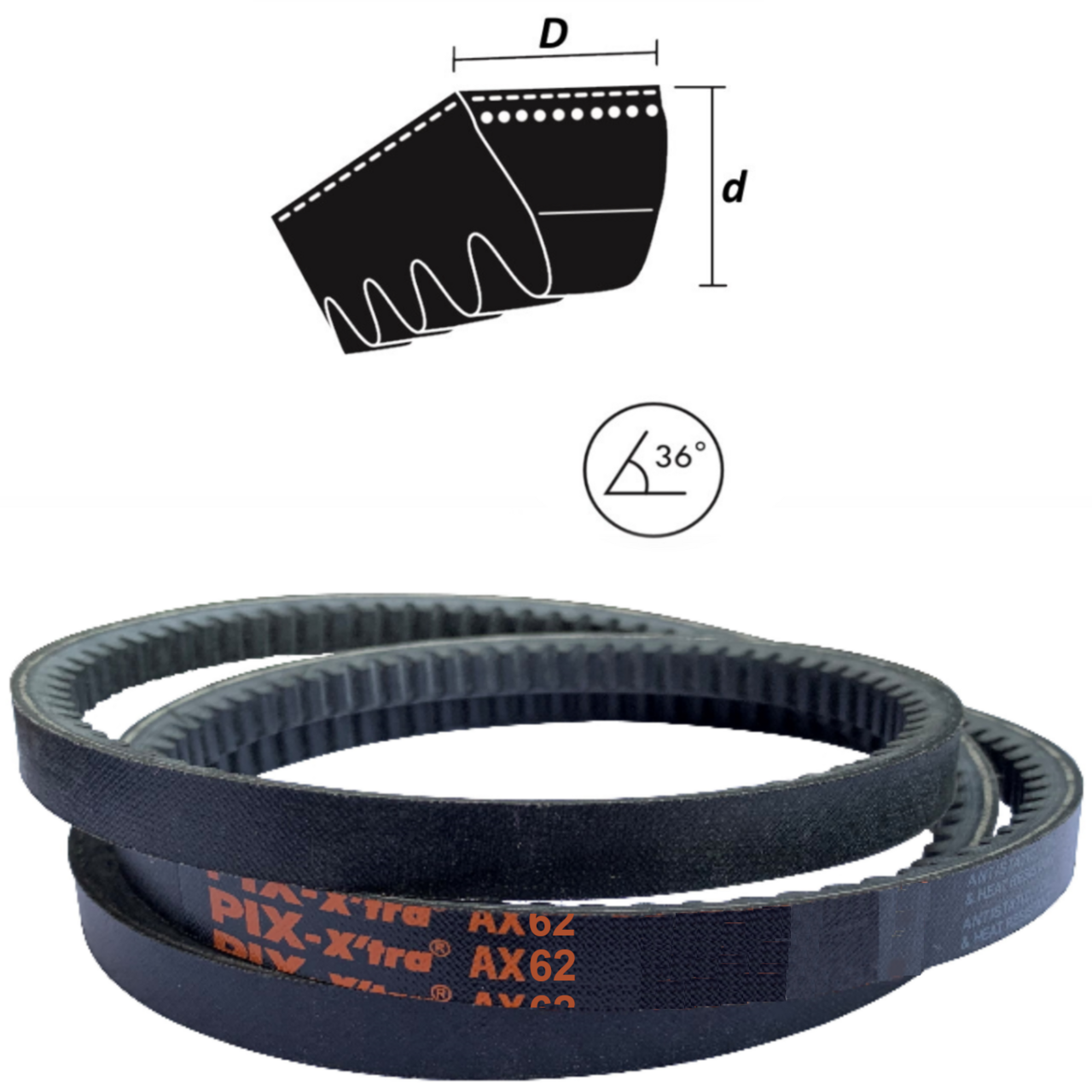

AX Section V-Belt AX62

PIX AX Section V-Belt
AX62

Toothed belts, also known as molded cogged belts, are flexible V-belts with teeth on the inner surface. These teeth reduce bending stress, increase efficiency, and promote cooler operation. They can be used on the same pulleys as wrap construction belts. Toothed belts are widely used for high-power transmission in applications such as compressors, pumps, fans, blowers, generators, and industrial drives.

All parts need to be fitted by a licensed technician

• Higher power transmission capacity than wrapped Belts
• Special cog design for enhanced flexibility and heat dissipation rate
• Suitable for drives using smaller diameter pulleys and high RPM
• Anti-static, oil & heat resistant
• Maximum Belt linear speed (Classical section: up to 30 m/Sec, Wedge: up to 42 m/Sec, Narrow: up to 45 m/Sec)
• Temperature range: -25°C to +100°C
