Belt replaces 490501C069, 490501Y069, 7540204, 7540498, 75404317, 9540317, 9540498, 108195, 6867

Belt Replaces:

Cub Cadet   490-501-C069   490-501-Y069   754-0204   754-0498   754-04317   754-04317A   954-04317   954-04317A   954-0498
Masport   490-501-C069   490-501-Y069   754-0204   754-04317   754-04317A   954-04317   954-04317A
Massey Ferguson   490-501-C069   490-501-Y069   754-0204   754-04317   754-04317A   954-04317   954-04317A
MTD   490-501-C069   490-501-Y069   754-0204   754-0498   754-04317   754-04317A   954-04317   954-04317A   954-0498
Rover   490-501-C069   490-501-Y069   754-0204   754-04317   754-04317A   954-04317   954-04317A
Toro   108195
Troy Bilt   490-501-C069   490-501-Y069   754-0204   754-04317   754-04317A   954-04317   954-04317A
Universal Belt 6867

__________________________________________________________________________________

Fits:

Cub Cadet
42" cut   LT1018 18hp model 13AL11CG710 year 2004 with hydrostatic transmission as the cutter deck belt
42" cut   RZT42 model 17AFCACS330 year 2013, RZT L & S Series RZT-L42, models 17AICBDS330 year 2021 and 17ARCACS330 years 2014-2020, RZT-S42 models 17ARCBDS330 years 2015-2016 and 17BRCBDS330 years 2017-20202 and the transmission drive belt
46" cut   TZT S Series RXT-S46 models 17AICBDN330 year 2021, 17AF2BDT330 year 2012, 17AFCBDT330 year 2013, 17ARCBDN330 year 2016, 17ARCBDT330 years 2014-2017 and 17BRCBDN330 years 2017-2020 and the transmission drive belt
48" cut   Pro Z 100 Series Pro Z 100 EFI 148-S model 53AWEFJF330 years 2016-2021, Ultima ZTX5 48 model 47AIAAA6330 year 2021, Z-Force LX48 model 17ASDAUB330 year 2017-2020, Z-Force SX 48 models 17ASDGJB330 years 2018-2020 and 47AIDGJB330 year 2021, as the transmission drive belt
50" cut   RZT 50 model 17AFCACP330 year 2013, RZT L&S Series RZT-L50 models 17AFCACP330 year 2014, 17ARCACP330 year 2014 and 17ARCACQ330 year 2015-2016, RZT-S50 model 17ARCBDQ330 years 2017-2018 as the transmission drive belt
54" cut   Pro Z 100 L&S Series 100 54 models 53AWEHRA330 years 2017-2018 and 53AWEFJA330 years 2016-2021, Ultima ZT2-54KW FAB model 17AIEAC3330 year 2021, Ultima ZTX5 54 model 47AIAAA7330 year 2021, Z-Force LZ54 model 17ASDAGC330 year 2014, SX54 models 17ASDGJC330 2017-2020 and 47AIDGJC330 year 2021, SZ-54 model 17ASDGHC330 year 2015, as the transmission drive belt
60" cut   Ultima ZTX5 60 model 47AIAAA8330 year 2021, Z-Force LX60 model 17ASDAGD330 years 2019-2021 and the transmission drive belt

Masport
46" cut   ZVT 46000 model 552857 years 2016-2020 as the transmission drive belt
48" cut   ZVT 4800 model 552905 years 2015-2020 as the transmission drive belt

Massey Ferguson
42" cut   MF42-20ZT model 17ARCACS395 year 2017, MD42-ZT model 17AACACS395 year 2019 as the transmission drive belt
50" cut   MF50-22ZT models 17AICACP395 years 2013-2014 and 17ARCACQ395 years 2015-2019 as the transmission drive belt

MTD
42" cut   MTD step through frams 2001 onwards including MTD Black Beauty, 18hp model 13AP608G129 year 2002, MTD Yardman, 22hp model 13BT604G452 year 2003, MTD Yardman Revolution, 17.5hp model 13AD624G643 year 2002 as the cutter deck belt

Rover
46" cut   RZT46 model 17AICACN333 years 2019-2020, RZT S 46 model 17BRCBDT333 years 2017-2020 as the transmission drive belt
48" cut   Z Series Z-Force LZ48 models 17AFDAGV333 year 2014 and 17ASDAGV333 year 2014 as the transmission drive belt
50" cut   RZT50 models 17ADCACP333 year 2013, 17ARCACP333 year 2014 and 17ARCACQ333 year 2015-2020 as the transmission drive belt

Toro
37" cut   Toro 05-37MS01 (1981) side discharge deck models as the cutter deck belt

Troy Bilt
42" cut   Colt models 17AFCACS309 year 2013 and 17ARCACS309 year 2015 as the transmission drive belt

Also a multi purpose quality 6867 v-belt suitable for various applications.

____________________________________________________________________

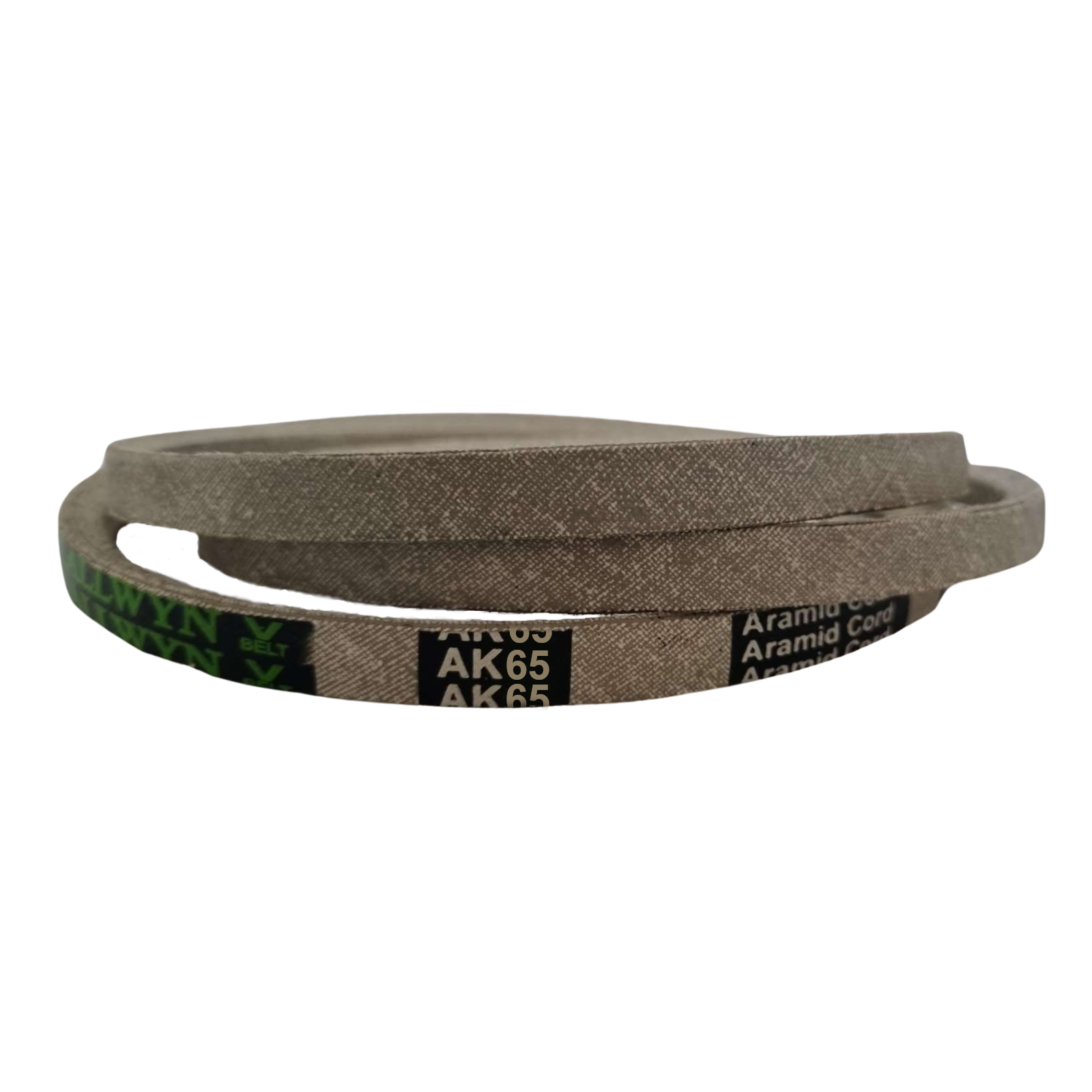

Belt Details:

Width (inches) 1/2" (mm) 12.7mm
Length inside circumference (inches) 65" (mm) 1667mm
Length outside circumference (inches) 67" (mm) 1717mm
(non-genuine)
 Made with quality Kevlar™

Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician

• High quality aftermarket replacement belt
• Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
• PIX belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
