V-Belt BX Section Sizes BX24 - BX79
BX25
$35.40
Sale price
$35.40
Regular price
Skip to product information
V-Belt BX Section Sizes BX24 - BX79
$35.40
Sale price
$35.40
Regular price
$32.75 each when you buy 4 or more see bulk prices
Buy in bulk & save
The discount is applied automatically in your cart.
| Quantity | You save | Price each |
|---|---|---|
| Buy 2 | 2.5% off | $34.52 |
| Buy 3 | 5% off | $33.63 |
| Buy 4 or more | 7.5% off | $32.75 |

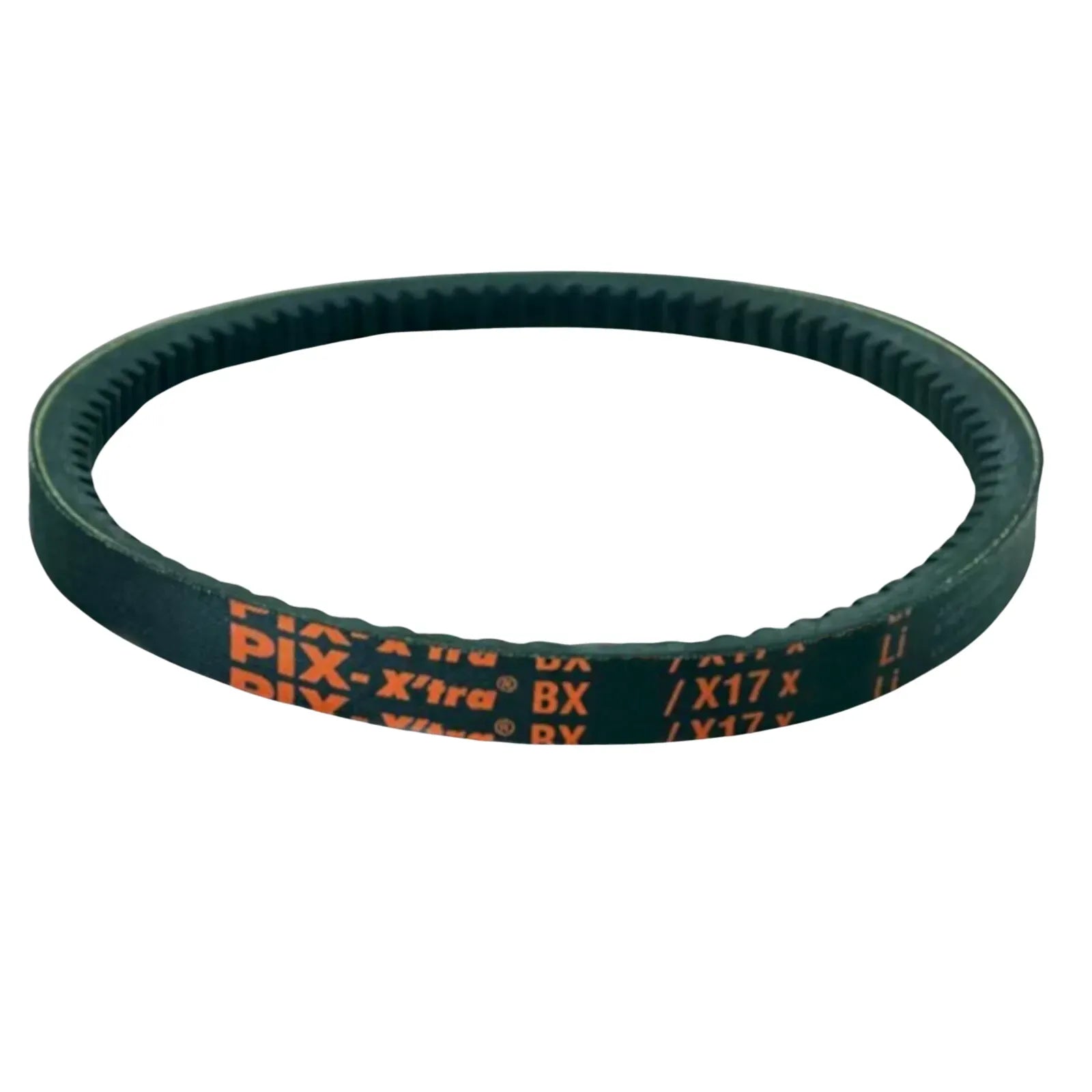

BX Section V-Belts | Sizes BX24 - BX79
- High quality aftermarket replacement belt
- Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
- These belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
- BX V-Belts are a cogged belt that can interchange on the same pulleys as B-series belts
-
BX belts can generate a higher horsepower rating due to the raw edge construction, which grips the pulley more effectively
________________________________________________________
Sizing:
Belts are measured on the internal circumference
Each belt number increases in 1" increments and are measured Li (inside length)
B-Section Belts 5/8" 17mm Top Width
Sizes not listed may be available but not kept in stock for immediate dispatch
We will need 1 day lead time. Pricing upon request.
___________________________________________________________
How to Select:
Select the belt size you require by clicking the drop-down menu.
Pricing adjusts according to the belt size selected
___________________________________________________________
All parts should be fitted by a licensed technician
Please note:
Due to supply issues some belt sizes are unavailable in PIX brand and have been substituted with Allwyn brand.
Belt size guide
IC = inside circumference. OC = outside circumference. Select your size above — every size listed below is available in this listing.
| Size | Inside (IC) | Outside (OC) | Top width |
|---|---|---|---|
| BX24 | 24" | 27" | 17 mm |
| BX25 | 25" | 28" | 17 mm |
| BX26 | 26" | 29" | 17 mm |
| BX27 | 27" | 30" | 17 mm |
| BX28 | 28" | 31" | 17 mm |
| BX29 | 29" | 32" | 17 mm |
| BX30 | 30" | 33" | 17 mm |
| BX31 | 31" | 34" | 17 mm |
| BX32 | 32" | 35" | 17 mm |
| BX33 | 33" | 36" | 17 mm |
| BX34 | 34" | 37" | 17 mm |
| BX35 | 35" | 38" | 17 mm |
| BX36 | 36" | 39" | 17 mm |
| BX37 | 37" | 40" | 17 mm |
| BX38 | 38" | 41" | 17 mm |
| BX39 | 39" | 42" | 17 mm |
| BX40 | 40" | 43" | 17 mm |
| BX41 | 41" | 44" | 17 mm |
| BX42 | 42" | 45" | 17 mm |
| BX43 | 43" | 46" | 17 mm |
| BX44 | 44" | 47" | 17 mm |
| BX45 | 45" | 48" | 17 mm |
| BX46 | 46" | 49" | 17 mm |
| BX47 | 47" | 50" | 17 mm |
| BX48 | 48" | 51" | 17 mm |
| BX49 | 49" | 52" | 17 mm |
| BX50 | 50" | 53" | 17 mm |
| BX51 | 51" | 54" | 17 mm |
| BX52 | 52" | 55" | 17 mm |
| BX53 | 53" | 56" | 17 mm |
| BX54 | 54" | 57" | 17 mm |
| BX55 | 55" | 58" | 17 mm |
| BX56 | 56" | 59" | 17 mm |
| BX57 | 57" | 60" | 17 mm |
| BX58 | 58" | 61" | 17 mm |
| BX59 | 59" | 62" | 17 mm |
| BX60 | 60" | 63" | 17 mm |
| BX61 | 61" | 63" | 17 mm |
| BX62 | 62" | 65" | 17 mm |
| BX63 | 63" | 66" | 17 mm |
| BX64 | 64" | 67" | 17 mm |
| BX65 | 65" | 68" | 17 mm |
| BX66 | 66" | 69" | 17 mm |
| BX67 | 67" | 70" | 17 mm |
| BX68 | 68" | 71" | 17 mm |
| BX69 | 69" | 72" | 17 mm |
| BX70 | 70" | 73" | 17 mm |
| BX71 | 71" | 74" | 17 mm |
| BX72 | 72" | 75" | 17 mm |
| BX73 | 73" | 76" | 17 mm |
| BX74 | 74" | 77" | 17 mm |
| BX75 | 75" | 78" | 17 mm |
| BX76 | 76" | 79" | 17 mm |
| BX77 | 77" | 80" | 17 mm |
| BX78 | 78" | 81" | 17 mm |
| BX79 | 79" | 80" | 17 mm |
Buy in bulk & save
Order more and the discount is applied automatically in your cart.
| Quantity | You save | Price each |
|---|---|---|
| Buy 2 | 2.5% off | $34.52 |
| Buy 3 | 5% off | $33.63 |
| Buy 4 or more | 7.5% off | $32.75 |
Specifications
| SKU | N112-BX25 |
|---|---|
| Brand | PIX or Allwyn |
| Shipping weight | 0.6 kg |
| Length | 33.5 cm |
| Width | 24.5 cm |
| Height | 2.0 cm |
| Cubic | 0.0016 m³ |
