SPZ Section V-Belt Sizes SPZ-0630, SPZ-630 - SPZ3550

SPZ0630

$26.45

SPZ Section V-Belt Sizes SPZ-0630, SPZ-630 - SPZ3550

$26.45

$24.47 each when you buy 4 or more see bulk prices

Buy in bulk & save

The discount is applied automatically in your cart.

Quantity	You save	Price each
Buy 2	2.5% off	$25.79
Buy 3	5% off	$25.13
Buy 4 or more	7.5% off	$24.47

Size

SPZ Section V-Belt | Sizes SPZ-0630 / SPZ-630 - SPZ3550

High quality aftermarket replacement belt
Oil resistant
Heat resistant
Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
These belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
___________________________________________________________

Sizing:

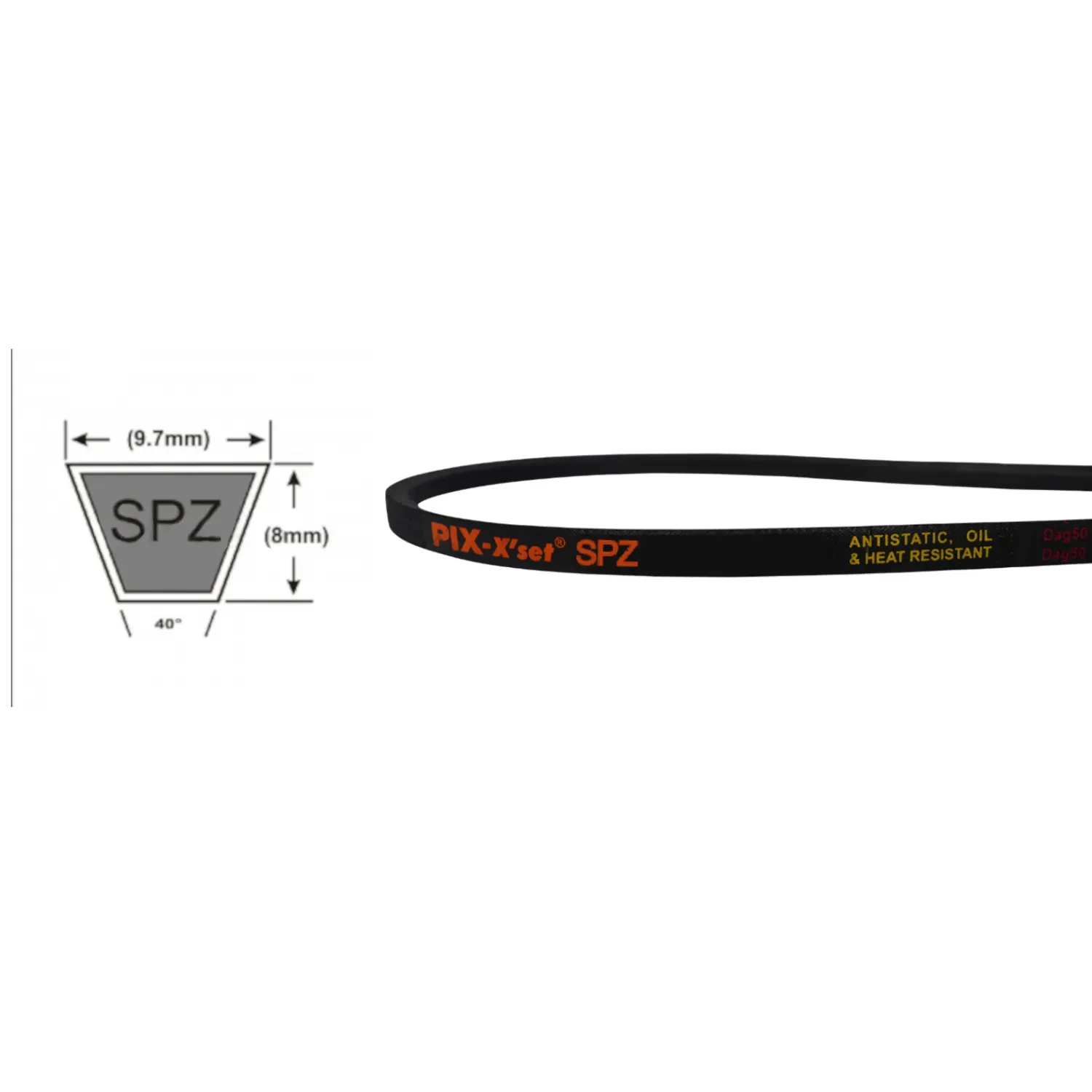

'SPZ' section belts are 9.5mm-10mm in width
___________________________________________________________

How to Select:
Select the belt size you require by clicking the drop-down menu.
Pricing adjusts according to the belt size selected
___________________________________________________________

All parts should be fitted by a licensed technician

Please note:
Due to supply issues some belt sizes are unavailable in PIX brand and have been substituted with Allwyn brand.

Belt size guide

IC = inside circumference. OC = outside circumference. Select your size above — every size listed below is available in this listing.

Size	Measurements
SPZ0630	643 mm OC
SPZ0670	683 mm OC
SPZ0710	723 mm OC
SPZ0750	763 mm OC
SPZ0760	773 mm OC
SPZ0800	813 mm OC
SPZ0775	788 mm OC
SPZ0850	863 mm OC
SPZ0875	888 mm OC
SPZ0900	913 mm OC
SPZ0925	938 mm OC
SPZ0940	953 mm OC
SPZ0950	963 mm OC
SPZ1000	1013 mm OC
SPZ1010	1023 mm OC
SPZ1030	1043 mm OC
SPZ1060	1073 mm OC
SPZ1080	1093 mm OC
SPZ1090	1103 mm OC
SPZ1120	1133 mm OC
SPZ1140	1153 mm OC
SPZ1150	1163 mm OC
SPZ1180	1193 mm OC
SPZ1200	1213 mm OC
SPZ1220	1233 mm OC
SPZ1240	1253 mm OC
SPZ1250	1263 mm OC
SPZ1270	1283 mm OC
SPZ1280	1293 mm OC
SPZ1300	1313 mm OC
SPZ1320	1333 mm OC
SPZ1340	1353 mm OC
SPZ1360	1373 mm OC
SPZ1400	1413 mm OC
SPZ1420	1433 mm OC
SPZ1462	1475 mm OC
SPZ1470	1483 mm OC
SPZ1500	1513 mm OC
SPZ1520	1533 mm OC
SPZ1537	1550 mm OC
SPZ1560	1573 mm OC
SPZ1600	1613 mm OC
SPZ1650	1663 mm OC
SPZ1700	1713 mm OC
SPZ1750	1763 mm OC
SPZ1800	1813 mm OC
SPZ1850	1863 mm OC
SPZ1900	1913 mm OC
SPZ2000	2013 mm OC
SPZ2030	2043 mm OC
SPZ2120	2133 mm OC
SPZ2140	2153 mm OC
SPZ2160	2173 mm OC
SPZ2240	2253 mm OC
SPZ2280	2293 mm OC
SPZ2360	2373 mm OC
SPZ2410	2423 mm OC
SPZ2500	2513 mm OC
SPZ2540	2553 mm OC
SPZ2650	2663 mm OC
SPZ2800	2813 mm OC
SPZ2840	2853 mm OC
SPZ3000	3013 mm OC
SPZ3150	3163 mm OC
SPZ3170	3183 mm OC
SPZ3550	3563 mm OC
SPZ837	850 mm OC
