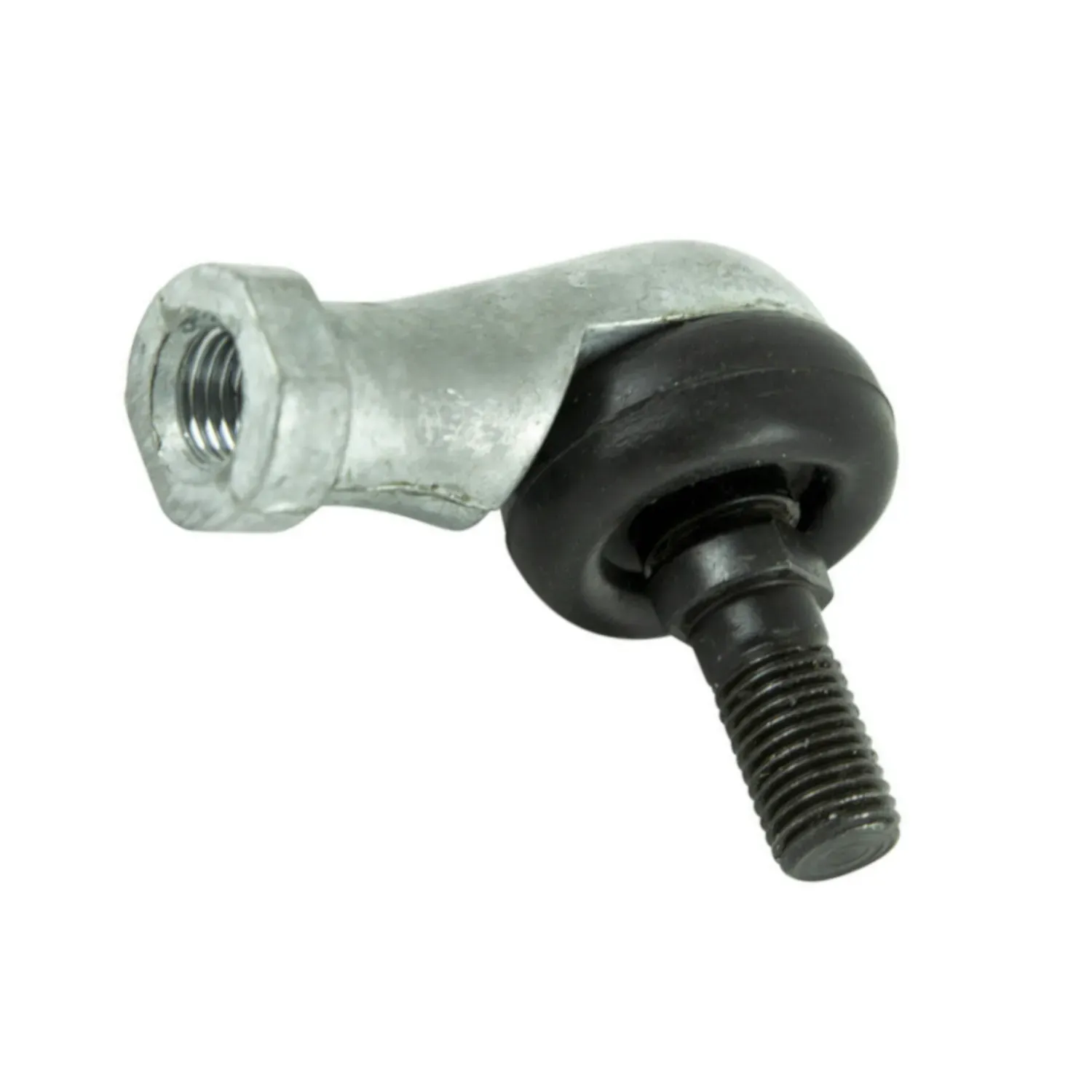

Tie Rod replaces GT02294 or GT2294
Ball Joint/ Tie Rod End, M10x1.25 Male right hand thread x M10x1.25 Female left hand thread
Replaces:
Greenfield GT 02294, GT02294, GT2294, GT 2294
Fits:
Greenfield
25" cut MiniMow ride-on lawn mower as the tie rod end that connects the steering link to the steering transfer shaft.
32" cut FASTCUT 17.5/32 Standard (GT22670) and 17.5/32 Steel Deck (GT22690), 25/32 Standard (GT22875) and 25/32 Steel Deck (GT22875SD) and Evolution FASTCUT32 as the tie rod end that connects the steering link rod to the chain sprocket wheel.
34" Evolution FASTCUT34, FASTCUT 17.5/34 Deluxe (GT228995), 25/34 V-Twin Deluxe (GT22900) as the tie rod end that connects the steering link rod to the chain sprocket wheel.
42" FASTCUT 25/42 V-Twin Deluxe (GT22885) as the tie rod end that connects the steering link rod to the chain sprocket wheel.
Measurements:
Male end: M10 x 1.25 right hand thread
Female end: M10 x 1.25 left hand thread
Thread Length: 0.787" (20mm)
Overall Length: 2.303" (58.5mm)
Overall Height: 2.086" (53mm)
(PN524)
SKU | PN524 |
Brand | Aftermarket OEM Replacement |
Shipping Weight | 0.3600kg |
Shipping Width | 0.245m |
Shipping Height | 0.020m |
Shipping Length | 0.335m |
Shipping Cubic | 0.001641000m3 |
Unit Of Measure | ea |
