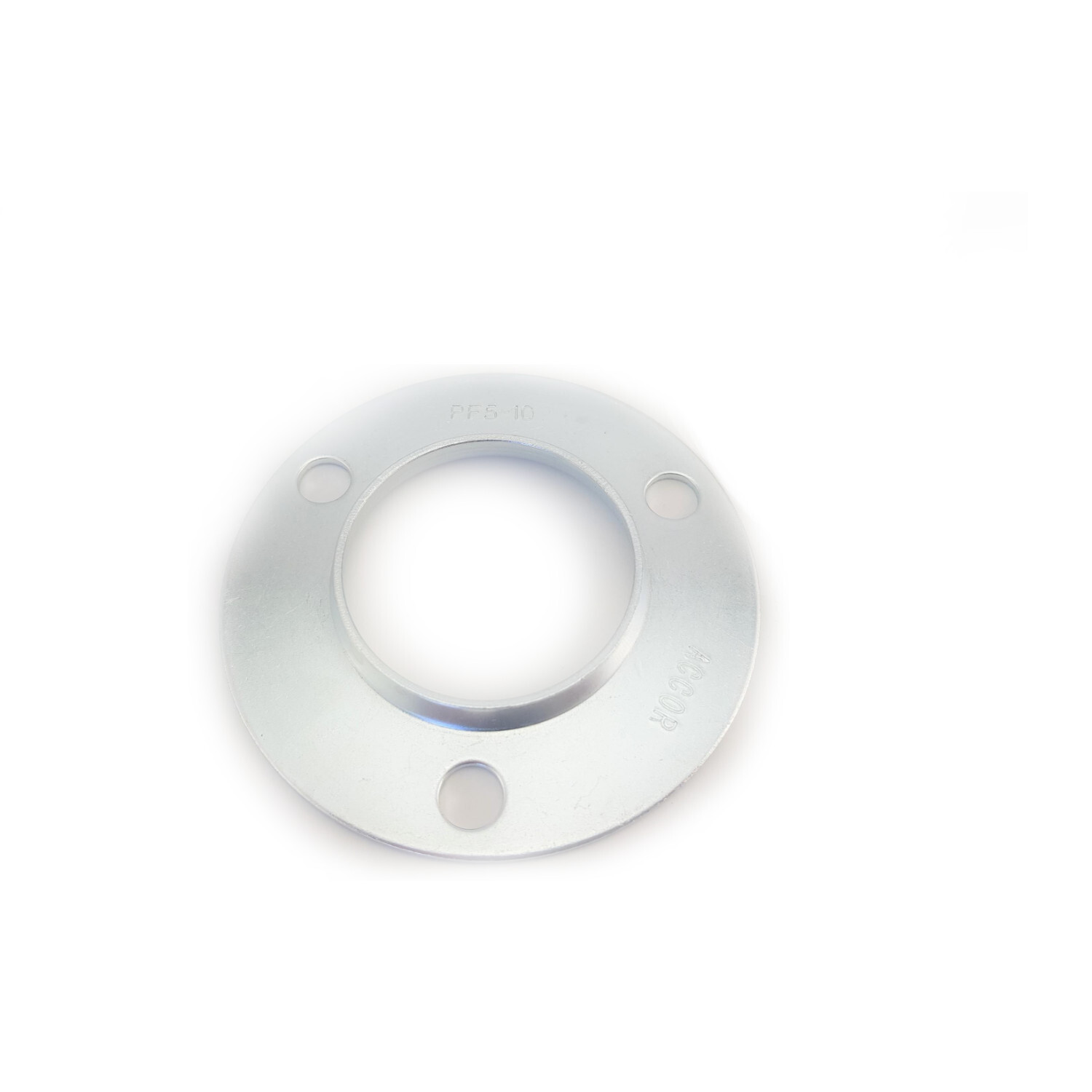

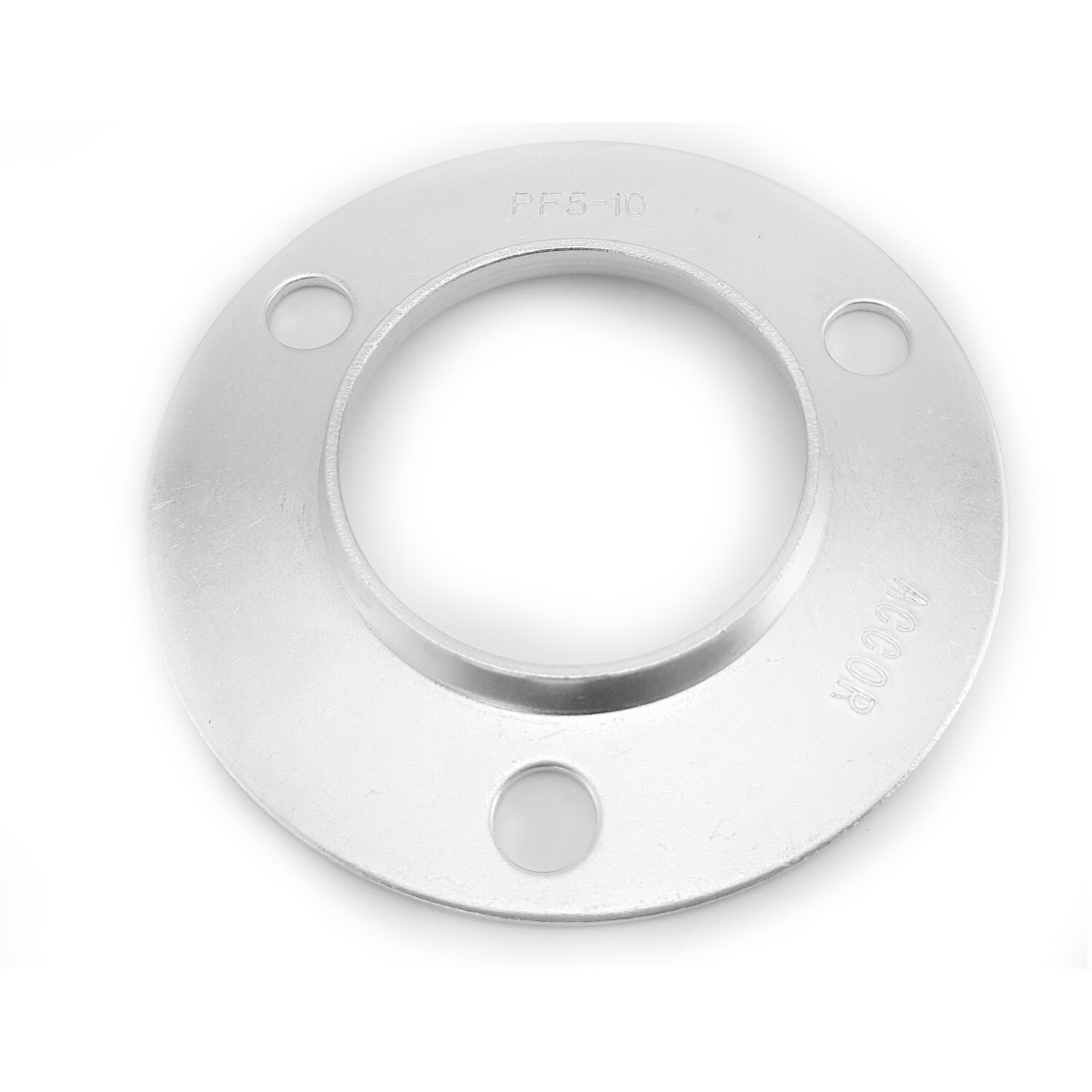

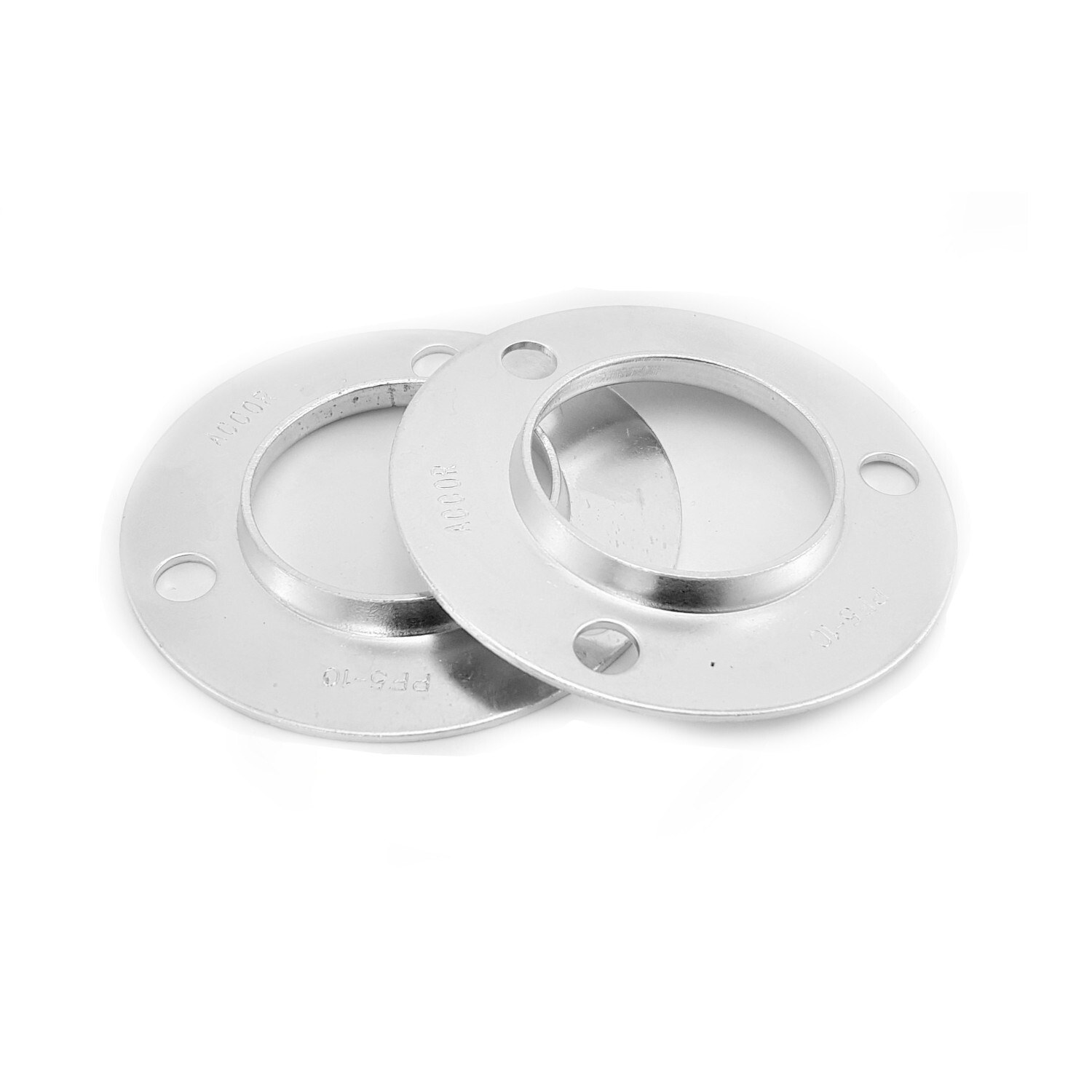

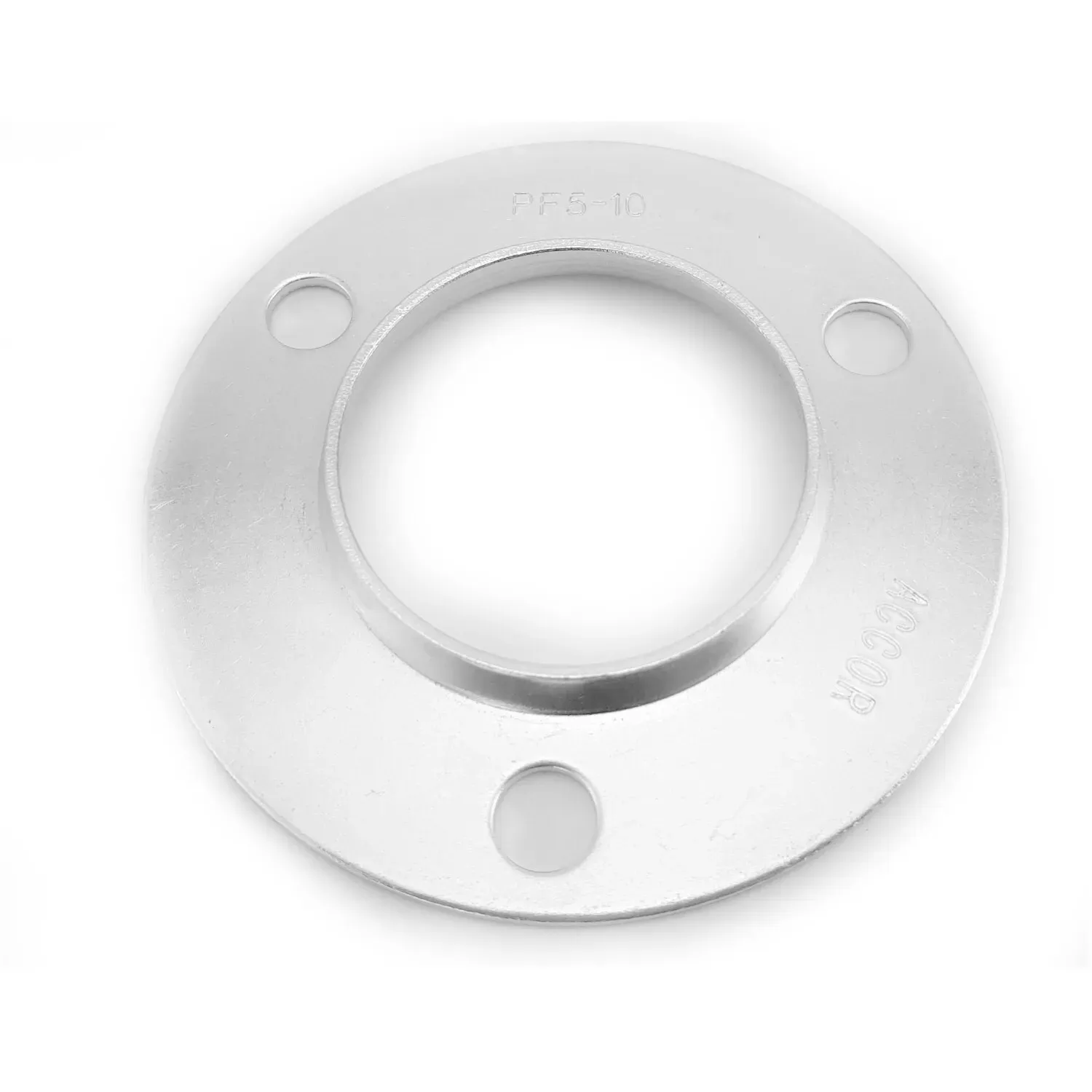

Cox Wheel Flanges AM024 or PF5-10 1 Pair

Fits many more models that are not listed to 2015
Check your manual for OEM Part #
AM024 or PF5-10

___________________________________________________________

Fits:

Cox Compact Tractor Rear Axle
1978, 1983   928 Series 2 models as the axle bearing
1983-1990   09B6, 09F3, 09J6 and 09M7 as the axle bearing
1990-1993   09B0, 09D1, 09G0 and 09J1 as the axle bearing

Economy models
1998   11.5hp, 13hp, CR431, CR434 and R and 4398H as the axle bearing

Orion XL and XL Professional
1991-1993 as the axle bearing

Rear Engine Ride-ons
1981-1989   8hp 07ES and 07H4  as the axle bearing

Scout XL
1987-1993   20L7 as the axle bearing

Stockman
1993-1994   16hp 23K94, 23H3 and 23E94 as the axle bearing
1994-1995   12hp 0913, 09E94 and 09K94 as the axle bearing
1995-1996   12.5hp, 15hp, 16hp 25C95 and 25K95 models as the axle bearing
1995-1998   10.5hp, 14hp, 15hp 2513, 25E94 and 24K9 4 models as the axle bearing
1995-1998   8.5hp, 10.5hp 2013, 20C95, 20195 and 42F95 as the axle bearing

___________________________________________________________

Details:

ID:  52mm (spherical)
OD:  95mm
Bolt Pitch Diameter:  76mm
Housing Material:  Pressed Steel

All parts should be fitted by a licenced professional and fitted to vehicle specifications

• Premium material to provide superior fatigue life and reliability
• Precise heat treatment, dimensions and surface finish contributes to reliable performance
• Each component undergoes "manufacturer's" rigorous testing to ensure quality standards
