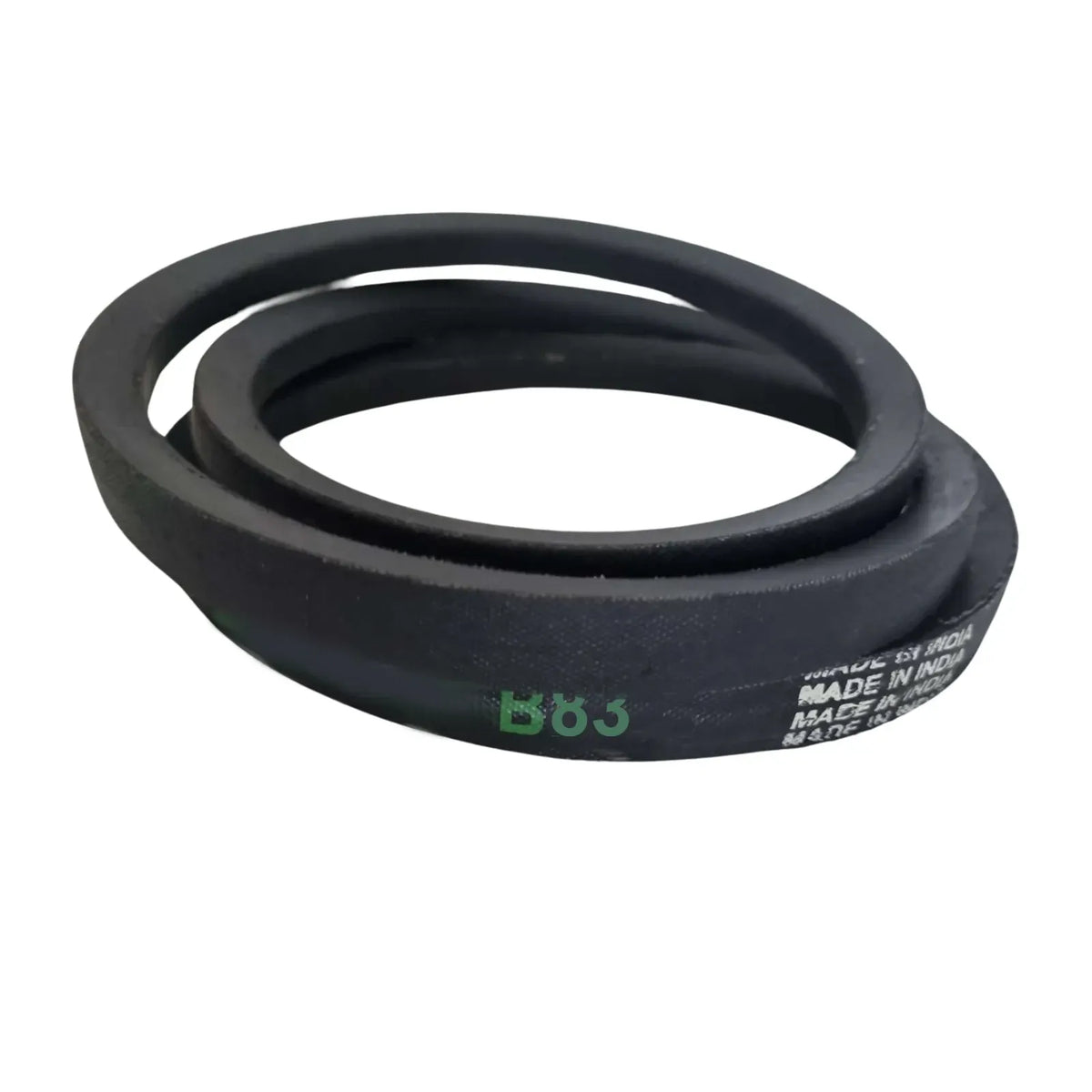

A Cox Stockman's drive belt, the engine to clutch belt, depends on the series: our B83 belt replaces Cox V34 on the Stockman Series 2 (2002 to 2005), our B84 belt replaces Cox V42 on the New Era and Series III, and our B74 belt replaces Cox V16 on many 1993 to 2002 Stockmans.
Read the Cox number off the old belt or from your manual, find it in the tables below, and you're done. The number decides the belt, not the model name alone.
| Belt code in our listings | Width | Number means | Outside length |
|---|---|---|---|
| A, such as A83 | 13 mm (1/2") | Inside length in inches | Number + 2" |
| B, such as B83 | 17 mm (5/8") | Inside length in inches | Number + 3" |
| K (AK, BK) | Same as A or B | Made with Kevlar | Same as A or B |
Source: our product listings, read 10 October 2026 (our listings give A as 1/2" (13 mm) and B as 5/8" (17 mm)); belt makers' section tables give the same mm widths (see Sources).
Which Cox belt goes where
Each table gives the Cox model and position exactly as our listing names them, the Cox number, and our belt with its section and inside length. "Kevlar" and "standard" are as each listing says; "not stated" means the listing doesn't say either. Where a listing says a belt fits only some of a series, so does the table.
Cox Stockman
| Stockman (as listed) | Position | Cox number | Our belt | Kevlar? |
|---|---|---|---|---|
| Series III, 2008 to 2010 on (A12208G to A15913A) | Engine to clutch (transmission) | V42 | B84 | Not stated |
| New Era, 2005 to 2008 (9005F to A10406J) | Engine to clutch (transmission) | V42 | B84 | Not stated |
| New Era 40" cut, 9005J and A10406C | Cutter deck | V25 | AK58 | Kevlar |
| Series 2, 2002 to 2005 (CR8001 to CR8005, 8002G, 8004F, 8004K) | Engine to clutch | V34 | B83 | Not stated |
| Series 2, 28" cut | Clutch to cutter deck | VB58, S-V13 | B58 | Not stated |
| Series 2, 30" cut | Clutch to cutter deck | VB55, V31 | B55 | Not stated |
| Series 2, 32" cut | Clutch to cutter deck | V10, SV10 | B53 | Not stated |
| Economy, 1998 to 2002 (4398H) | Engine to clutch | V16, SV16 | B74 | Not stated |
| Economy 28" / 30" rear discharge / 32" cut | Clutch to cutter deck | VB58 / VB55 / V10 | B58 / B55 / B53 | Not stated |
| 1993 to 1998, 12.5 to 16hp (25E94, 25K94, 25C95, 25K95, 25K96) | Engine to clutch | V16, SV16 | B74 | Not stated |
| 1993 to 1994, 25I3 | Engine to clutch | V22, SV22, VB72 | B72 | Not stated |
| 32" cut 25E94, 25C95, 25K95, 25K96 | Clutch to cutter deck | V10, SV10 | B53 | Not stated |
| 38" and 48" cut 25E94 with extension arms (not all) | Clutch to cutter deck | VB58, S-V13 | B58 | Not stated |
| 10.5 and 12hp, 1994 to 1998 (25H94, 09C95, 43H95) | Engine to clutch | V16, SV16 | B74 | Not stated |
| 12hp 28" cut, 1994 to 1995 (09E94, 09K94) | Engine to electric clutch | VB65, V15, SV15 | B65 | Not stated |
| 12hp 28" cut, 1994 to 1995 (09I3) | Engine to clutch | V14, VB64, SV14 | B64 | Not stated |
| 12hp 28" cut (09I3, 09E94, 09K94) | Clutch to cutter deck | V07, VB50 | B50 | Not stated |
| 28" cut 25H94, 09C95, 43H95; 38" and 48" cut 09E94, 09K94, 25H94 | Clutch to cutter deck | VB58, S-V13 | B58 | Not stated |
| 16hp, 1993 to 1994 (23H3) | Engine to electric clutch | VB65, V15, SV15 | B65 | Not stated |
| 16hp, 1993 to 1994 (23E94, some 23K94 and 23C95) | Engine to electric clutch | V14, VB64, SV14 | B64 | Not stated |
| 16hp, 1993 to 1994 (some 23K94 and 23C95) | Forward and reverse | V28, V04, SV04 | AK78 | Kevlar |
| 16hp, 1993 to 1994 (23H3) | Forward and reverse | VA77, SVA77 | A77 | Standard |
| 32" cut 16hp (23E94, some 23H3, 23K94); 32" cut 18hp | Electric clutch to cutter deck | V05, SV05 | B40 | Not stated |
| 38" cut 23E94, 23K94, 23C95 (electric PTO clutch) | Clutch to cutter deck | V06, SV06 | BK45 | Kevlar |
| 38" cut 23H3 (electric PTO clutch) | Electric clutch to cutter deck | V21, VB46 | B46 | Not stated |
| 48" cut 23E94, 23K94 (electric PTO clutch) | Electric clutch to cutter deck | V08, SV08, VB51 | B51 | Not stated |
| 48" cut 23H3 (electric PTO clutch) | Electric clutch to cutter deck | V09, SV18, VB52 | B52 | Not stated |
| 8.5 and 10.5hp, 1995 to 1998 (20C95, 20I95, 20J94, 42F95); 5hp 25" cut 07A95 | Engine to clutch | V01, VA33 | A33, or Kevlar AK33 for the 1995 to 1998 models | Not stated / Kevlar |
| 8.5 and 10.5hp, 1995 to 1998 (as above) | Engine to cutter deck | VB58, S-V13 | B58 | Not stated |
| 5hp 25" cut, 1995 to 1997 (07A95) | Clutch to cutter deck | VB58, S-V13 | B58 | Not stated |
The 1993 to 1994 16hp Stockmans changed belts within one series code ("some 23K94"), so on those the Cox number on the old belt matters most. For the 25I3 and 25K94 deck belt, two of our listings name different belts (B53 on the 32" deck, B55 with no deck size), so send us the Cox number from your old belt and we'll check.
Cox Lawn Boss
| Lawn Boss (as listed) | Position | Cox number | Our belt | Kevlar? |
|---|---|---|---|---|
| 32" cut 8900, 9605G, CR9600 13hp, A10506G 17hp | Transmission drive | V39 | A83 | Standard |
| 32" cut, same models | Cutter deck | V40 | A57 | Standard |
| 38" cut 15.5hp, late model | Transmission drive | V39 | A83 | Standard |
For the 38" Lawn Boss 15.5hp deck belt, two of our listings name different belts, so send us the Cox number from your old belt and we'll check.
Cox New Generation (1998 to 2002; 13 to 18hp, 5302G, 5303L, 5398A)
| Position (as listed) | Cox number | Our belt | Kevlar? |
|---|---|---|---|
| Power take off / engine to PTO | W01 | AK70 | Kevlar |
| Engine to clutch | V28, V04, SV04 | AK78 | Kevlar |
| 40" cut side discharge: cutter deck / electric clutch to cutter deck | V30 | AK51, or A51 | Kevlar / Standard |
| 40" cut side discharge: cutter deck | V25 | AK58 | Kevlar |
| 48" cut: cutter deck | W04 | AK54 | Kevlar |
| 48" cut: cutter deck, 2 belts required | V09, SV18, VB52 | B52 | Not stated |
The 40" and 48" New Generation decks use more than one belt: match the Cox number on each old belt.
Cox Nova, Supa Nova and Orion XL
| Model (as listed) | Position | Cox number | Our belt | Kevlar? |
|---|---|---|---|---|
| Nova and Supa Nova 2300, Jul 1990 to May 1993 | Engine to electric clutch | VB65, V15, SV15 | B65 | Not stated |
| Nova and Supa Nova 2300 | Forward and reverse drive, engine to drive cone | VA77, SVA77 | A77 | Standard |
| Nova and Supa Nova 2300, 32" / 38" / 48" cut | Clutch to cutter deck | SV20 / V21 / V09, SV18 | B43 / B46 / B52 | Not stated |
| Orion XL Professional 2500, 1991 to 1993 (selected) | Engine to clutch | V22, SV22 | B72 | Not stated |
| Orion XL 2500 and XL Professional 25J1, 32" cut | Clutch to cutter deck | V11, SV11, VB54 | B54 | Not stated |
Some Orion XL 2500 models are listed with a B58 instead, so check the Cox number on the old belt.
Older Cox: Compact Tractor, GT2000, Scout XL, rear engine and others
| Model (as listed) | Position | Cox number | Our belt | Kevlar? |
|---|---|---|---|---|
| Compact Tractor 28" cut, 1969 to 1993 (9-28 to 09J1) | Transmission drive / engine to clutch | V14, VB64, SV14 | B64 | Not stated |
| Compact Tractor 28" cut (9-28, 928 series, 09F3, 09M7, 09B0, 09G0, 09D1, 09J1) | Cutter deck | V07, VB50 | B50 | Not stated |
| Compact Tractor 28" cut, 1986 to 1987 (09B6, 09J6) | Clutch to cutter deck | V08, SV08, VB51 | B51 | Not stated |
| Compact Tractor 48" cut (09B0, 09D1, 09F3, 09G0, 09I3, 09J1) | Clutch to cutter deck | SVB57, V41 | B57 | Not stated |
| GT2000, 1972 to 1979, 7 and 8hp | Transmission drive / engine to clutch | VA29, SV23, V23 | AK29, or A29 | Kevlar / Standard |
| GT2000, 1972 to 1979 | Clutch to cutter deck | VB55, V31 | B55 | Not stated |
| Scout XL 20L7, Feb 1987 to 1993; rear engine 7000C, 07A4, 07H4, 07ES, 1981 to 1989 | Engine to clutch | V01, VA33, SV01, SV07 | A33 | Not stated |
| Scout 8hp (selected models, as listed) | Transmission drive | VA38 | A38 | Standard |
| Craftsman XL 26" cut 5hp and 28" cut 10hp | Transmission / engine to clutch | V01, VA33 | A33, or Kevlar AK33 | Not stated / Kevlar |
| Scout XL 20L7; rear engine (as above) | Clutch to cutter deck (Scout XL); engine to cutter deck (rear engine) | VB58, S-V13 | B58 | Not stated |
| Z Cut 8804J ZTR (2004) | Direction control / cutter deck | V28 / V37 | AK78 / BK94 | Kevlar |
| Conquest CR8400 and CR8401 | Upper transmission | V28 | AK78 | Kevlar |
| C1332 and C1532, 2005 to 2008 (models as listed) | Engine to clutch (transmission) | V42 | B84 | Not stated |
| 25" cut 5-78, 1974 to 1980 | Cutter deck | VA46 | A46 | Standard |
| Mow Mobile 5-25 25" cut, 1968 to 1974 | Clutch to cutter deck | VA46 | A46 | Standard |
| Mow Mobile 6-28 and 7-28 28" cut, 1963 to 1968 | Engine to cutter deck | VA46 | A46 | Standard |
| Cobber 55, 55" cut (selected models only) | Cutter deck | VB55, V31 | B55 | Not stated |
| Mow Mobile 8-28 28" cut, 1968 to 1972 | Cutter deck / clutch to cutter deck | VA53 | A53 | Standard |
Our listings give the Scout XL 20L7 an A33 and other 8hp Scouts an A38, so match the Cox number on your old belt. We also list belts for the Cox garden edger, garden recycler and fertiliser spreader. Your Cox number isn't here? Send it to us and we'll check.
Kevlar or standard? Match the old belt
If the old belt had a K in its code (AK or BK), buy the Kevlar belt. A Kevlar belt can replace a standard belt of the same size, but a standard belt can't replace a Kevlar one: in a Kevlar position it can shred within hours. In our team's experience, most mower deck belts need Kevlar. Where our listing offers only a standard belt for a deck (some older Cox models), match what came off.
Three Cox numbers come both ways in our range, so you can pick: Cox V30 (A51 or Kevlar AK51), Cox VA29 (A29 or Kevlar AK29) and Cox VA33 (A33 or Kevlar AK33). More in our Kevlar mower belt guide.
How to get the right Cox belt
- Find the Cox number. Look on the old belt or in your owner's manual. Cox's own owner's manual library lists manuals by the same model codes our listings use (such as 23E94, 4398H, 8002G and 9005J).
- Find the position. Many Cox ride-ons have two or three belts: engine to clutch, clutch to cutter deck, and on some a forward and reverse or PTO belt. Our listings name the position for each model.
- Check the deck width. On the Stockman, Nova and New Generation, the deck belt changes with the cutting width (from 25 to 48 inch on a Stockman, as the table shows).
- No number? Measure the top width (13 mm is A, 17 mm is B) and the inside length, then check against the tables. Our V-belt sizes chart explains the codes.
Our belt listings say they need to be fitted by a licensed technician. Follow the routing and tensioning in your Cox manual, or have a mower mechanic fit the belt.
Which Bearings Express belt fits
- Pick the B83 belt for Cox V34 for a Stockman Series 2 engine to clutch belt.
- Pick the B84 belt for Cox V42 for a Stockman New Era, Series III or C1332/C1532.
- Pick the B74 belt for Cox V16 for the 1993 to 1998 Stockmans it lists (25E94, 25K94, 25H94, 25C95, 25K95, 25K96, 09C95 and 43H95) and the Stockman Economy 4398H.
- Pick the Kevlar AK78 for Cox V28 for a New Generation engine to clutch belt or the forward and reverse belt on some 1993 to 1994 16hp Stockmans (23K94, 23C95; the 23H3 takes the A77).
- Pick the Kevlar AK51 for Cox V30 for the Cox V30 belt on the 40" side-discharge New Generation deck.
- Pick the A83 for Cox V39 for the transmission drive belt on the Lawn Boss models it lists (32" cut 8900, 9605G, CR9600, A10506G and the late 38" 15.5hp).
More Cox belts and parts are in our Cox collection.
Other Cox ride-on parts we list
- Idler pulleys: the Cox V-groove idler PIVBB20SPA90 (takes an A-section belt) and two flat idlers.
- Steering and drive: the drive and steering chain AM018 / #415H for the Cox models it lists, including the 1994 to 1998 Stockmans.
- Bearings: 6004-2RS bearings for Cox BB204212, front wheel bearings on selected Cox ride-ons, and lay shaft self-aligning bearings BB25SAN for Stockman, Scout XL and Orion XL axles.
Questions people also ask
Is our B83 the same as a Cox V34 belt?
It's listed to replace Cox V34 on the Stockman Series 2 as the engine to clutch belt: a 5/8" (17 mm) B-section, 83 inches inside. Like all our Cox belts it's an aftermarket (non-genuine) belt.
Where can I find a Cox mower deck belt diagram?
In the parts diagrams in the owner's manual for your model. Cox's own manual library has manuals from the 1963 Compact Tractor to current Stockmans. Our listings name each belt's position but don't show routing.
What belt does a Cox Lawn Boss 13hp take?
On the 32" cut Lawn Boss (8900, 9605G, CR9600 13hp) our listings give an A83 for Cox V39 as the transmission drive belt and an A57 for Cox V40 as the cutter deck belt.
Related reading
- Do I need a Kevlar mower belt? Kevlar vs standard V-belts
- V-belt sizes chart: A, B, C, Z (M) and SPZ
- Roller chain sizes, including our Cox drive and steering chain
Sources
- Cox Mowers, Product Manuals (owner's manual library by model and code), https://coxmowers.com.au/pages/product-manuals, read 10 October 2026.
- Gates Australia, Industrial Power Transmission South Pacific Catalogue (2018): Hi-Power II sections p. 29, A table p. 31, B table pp. 32 to 33. Read 30 September 2026.
Checked against Cox's manual library, belt makers' section tables and Bearings Express product listings on 10 October 2026.
