Belt Replaces Cox V28, V04 and SV04, Kingcat V28 or Murray 314572
$60.70
Sale price
$60.70
Regular price
$56.15 each when you buy 4 or more see bulk prices
Buy in bulk & save
The discount is applied automatically in your cart.
| Quantity | You save | Price each |
|---|---|---|
| Buy 2 | 2.5% off | $59.18 |
| Buy 3 | 5% off | $57.67 |
| Buy 4 or more | 7.5% off | $56.15 |
Replaces:
Cox V28, V04 and SV04
Kingcat V28
Murray 314572
___________________________________________________________

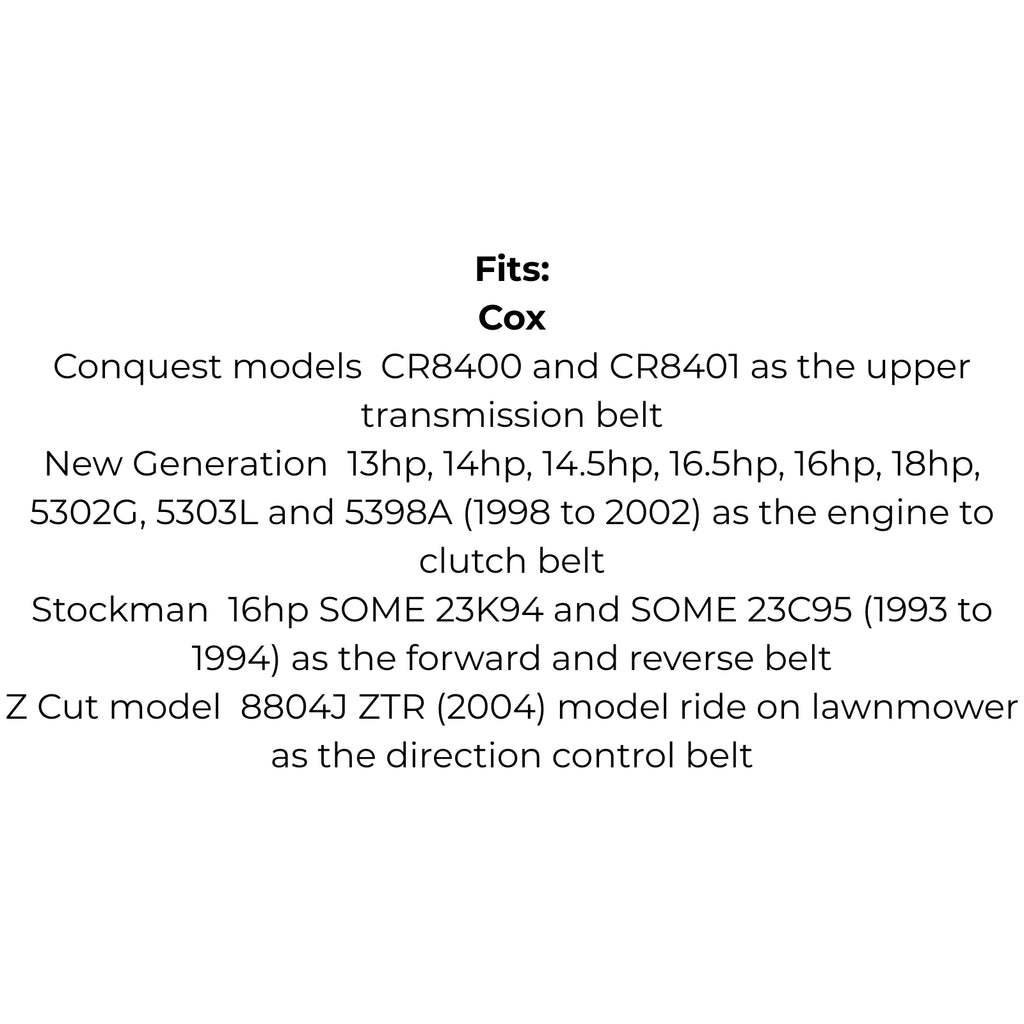

Fits:
Cox
Conquest models CR8400 and CR8401 as the upper transmission belt
New Generation 13hp, 14hp, 14.5hp, 16.5hp, 16hp, 18hp, 5302G, 5303L and 5398A (1998 to 2002) as the engine to clutch belt
Stockman 16hp SOME 23K94 and SOME 23C95 (1993 to 1994) as the forward and reverse belt
Z Cut model 8804J ZTR (2004) model ride on lawnmower as the direction control belt
Kingcat
40" cut side discharge 16hp electric clutch KR6901, KR6902, KR6903, KR6905, KR6906, KR6907 and KS6904 as the PTO to cutter deck belt
7300J and KR7307 as the cutter deck belt
___________________________________________________________

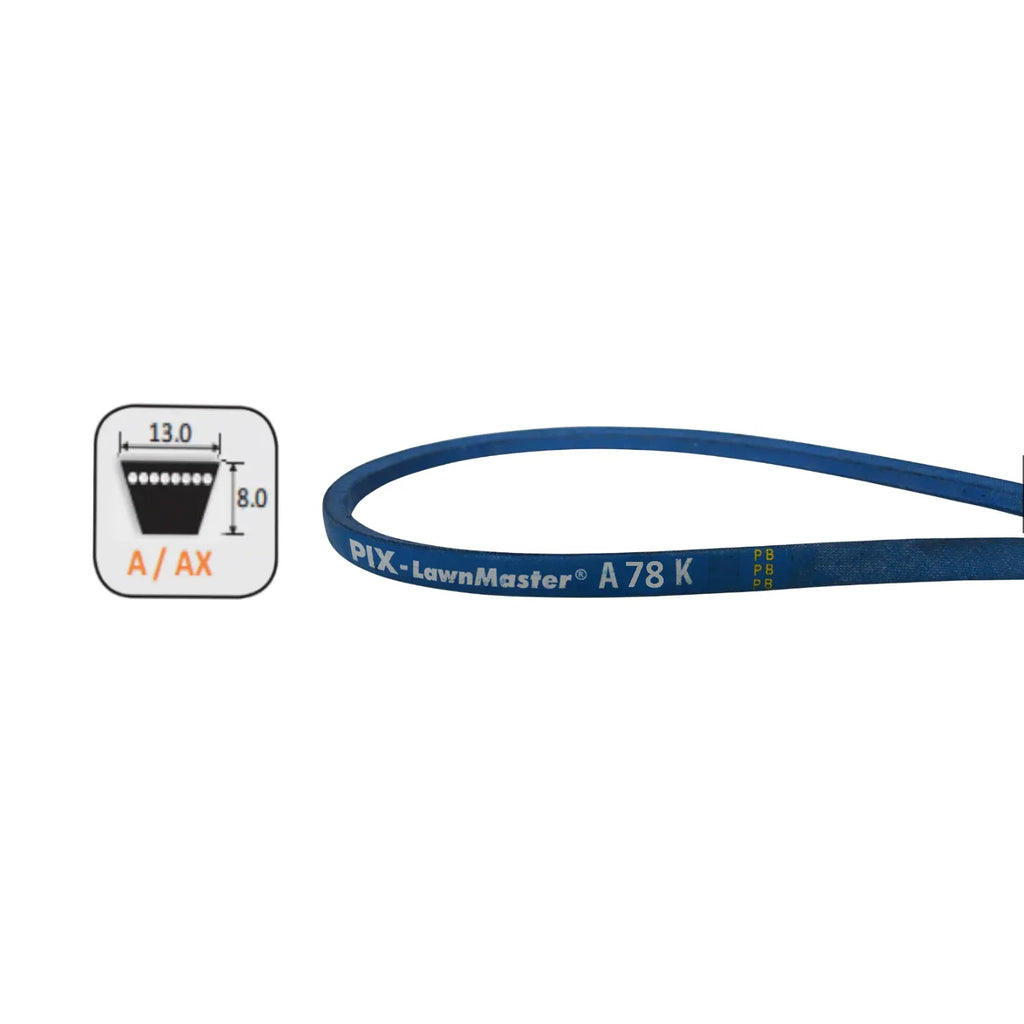

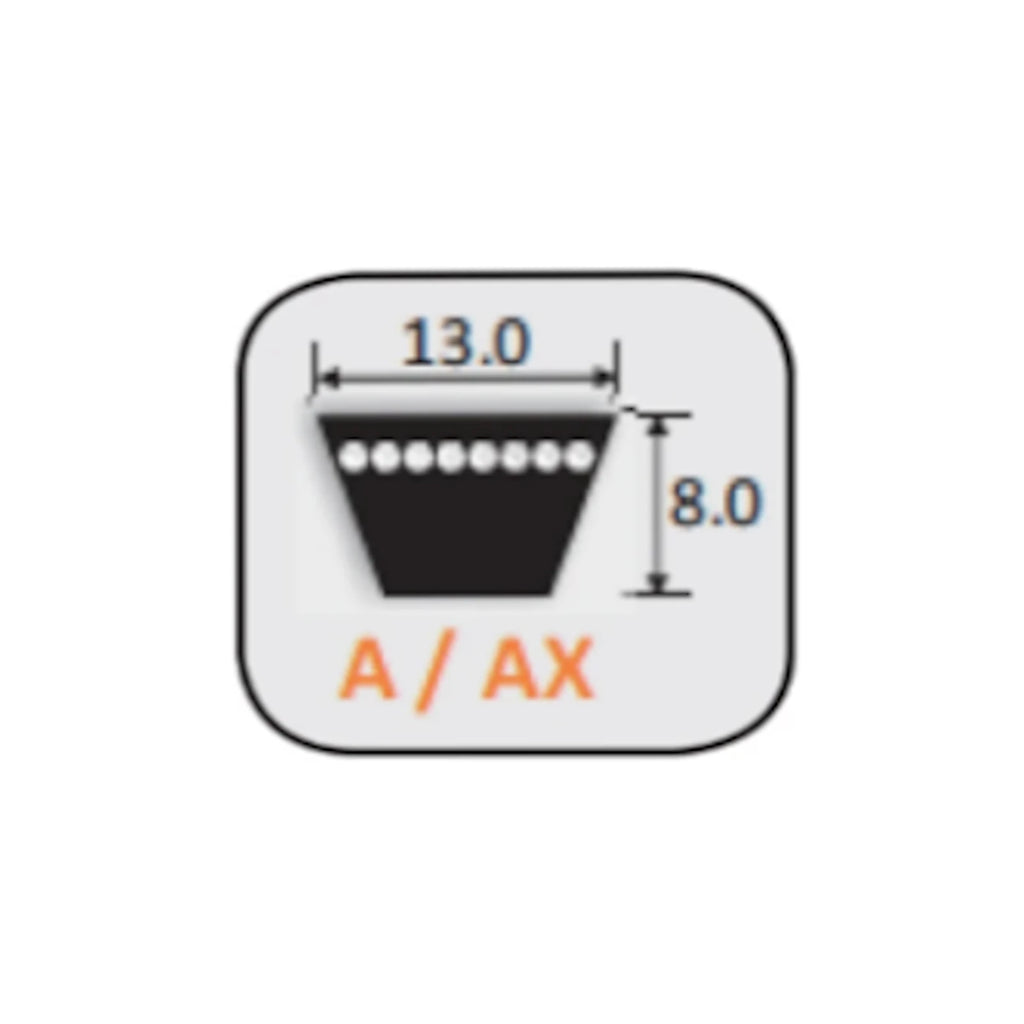

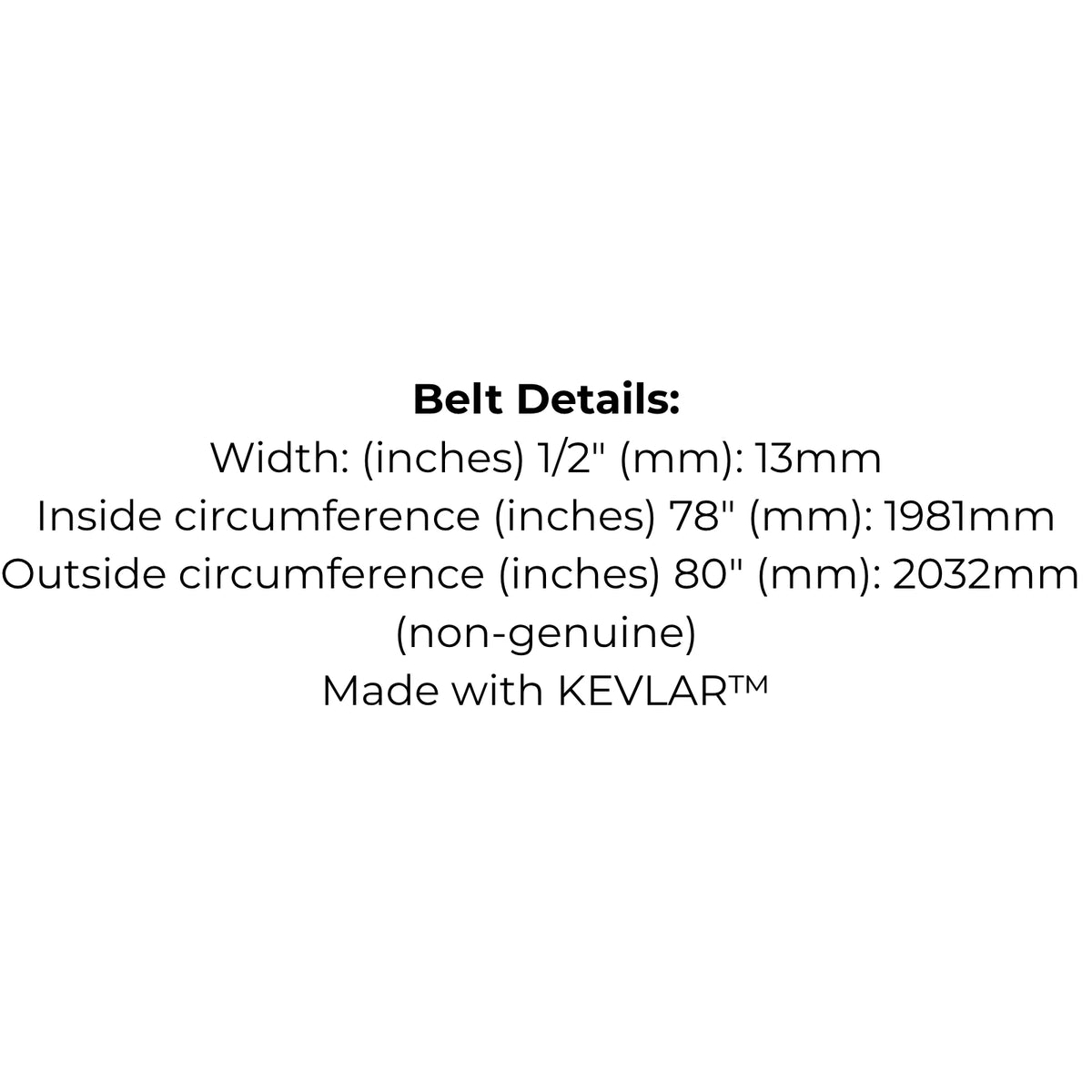

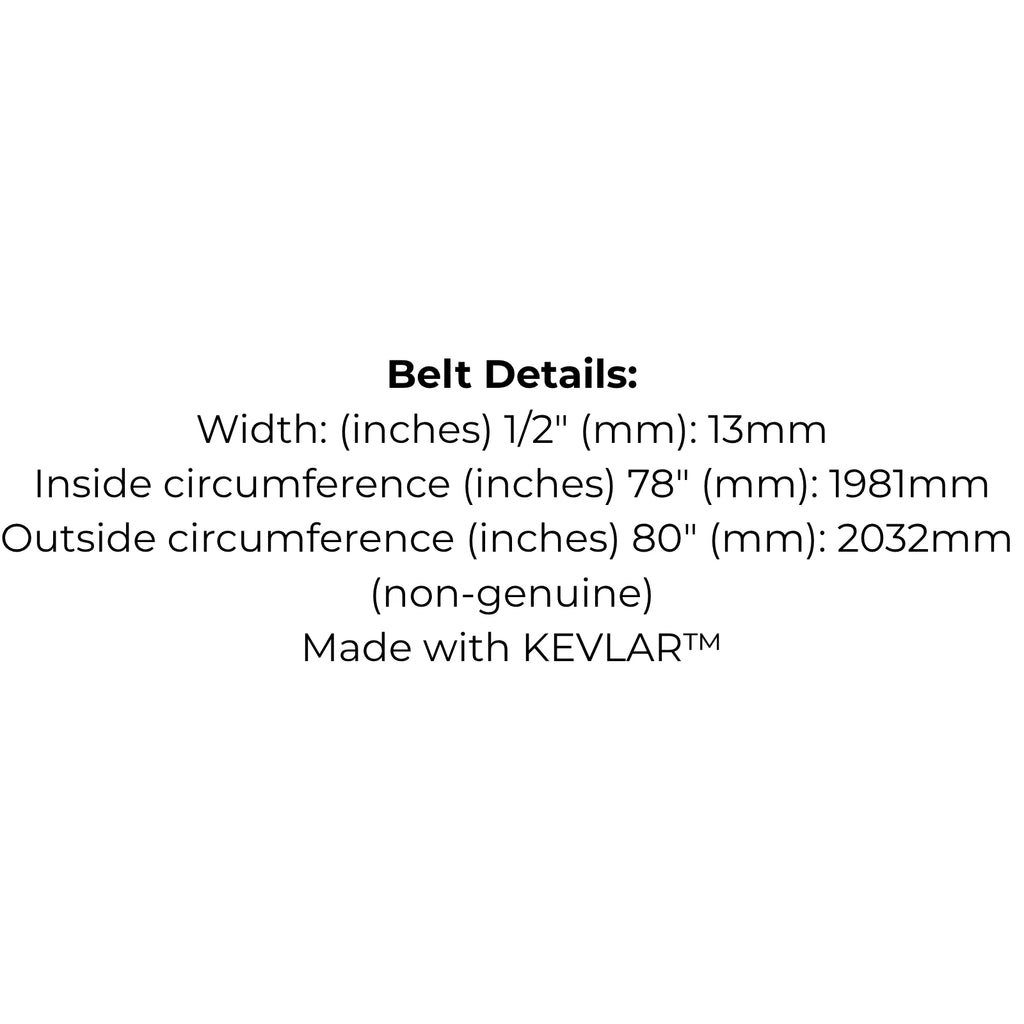

Belt Details:
Width: (inches) 1/2" (mm): 13mm
Inside circumference (inches) 78" (mm): 1981mm
Outside circumference (inches) 80" (mm): 2032mm
(non-genuine)
Made with KEVLAR™
Please check your manual for the correct belt number as there could be multiple applications.
Manufacturers have uploaded manuals online.
All parts need to be fitted by a licensed Technician
- High quality aftermarket replacement belt
- Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
- These belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
Buy in bulk & save
Order more and the discount is applied automatically in your cart.
| Quantity | You save | Price each |
|---|---|---|
| Buy 2 | 2.5% off | $59.18 |
| Buy 3 | 5% off | $57.67 |
| Buy 4 or more | 7.5% off | $56.15 |
Interchange Numbers / Also fits
v28, v04, sv04, 314572, 122026758534, 126397560518, 235493402849
Specifications
| Part number (MPN) | AK78 |
|---|---|

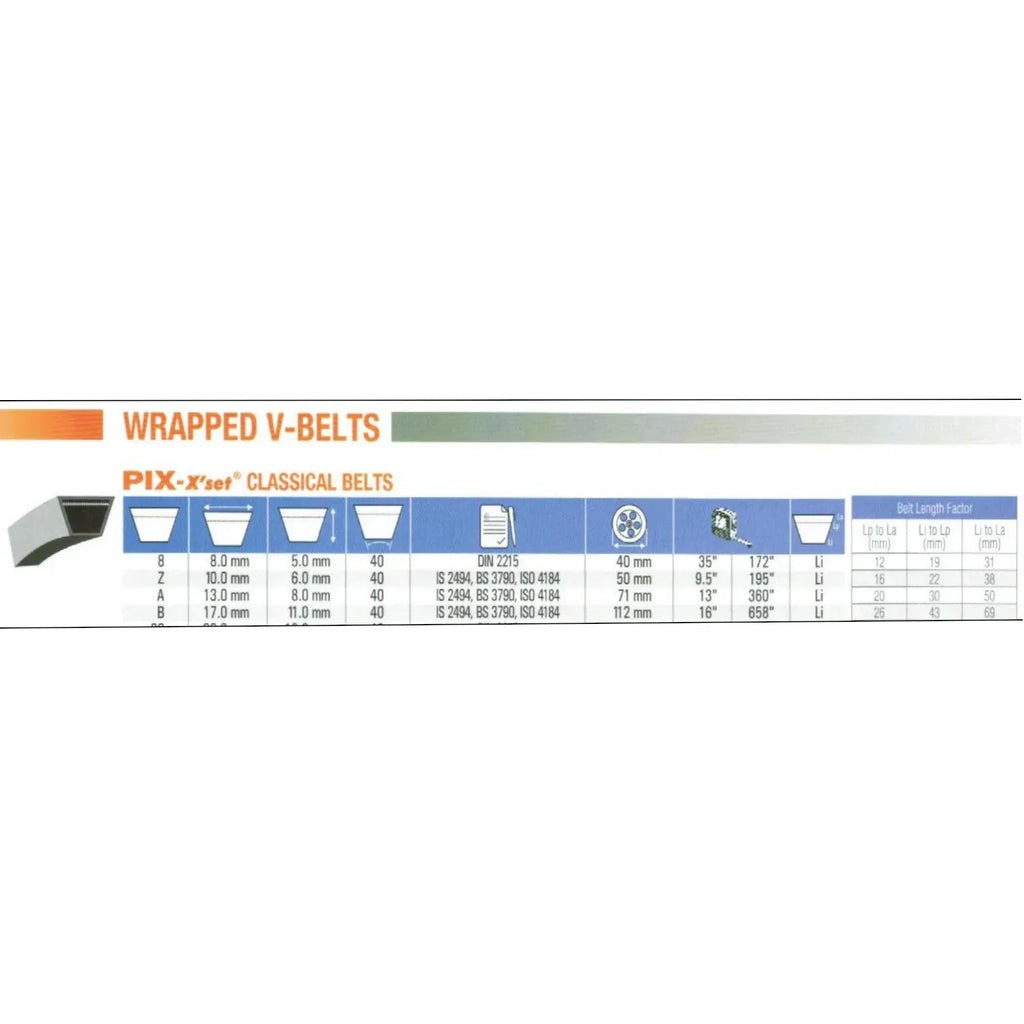

| Belt section | AK |
| Position | Drive (traction), PTO, Deck (cutter) |
| Replaces OEM numbers | Cox V28, Cox V04, Cox SV04, Kingcat V28, Murray 314572, Simplicity 1666801 (Cutter), Ayp 74278, Ayp 120418X, Ayp 123461X, Ayp 124293X, Briggs & Stratton (Murray) 037X69, Briggs & Stratton (Murray) 037X69MA and 12 moreBriggs & Stratton (Murray) 37X69, Cub Cadet 489399R1, Cub Cadet 754-3037, Huskee/ Husky 4461208, Husqvarna 532123461, John Deere M44272, John Deere M47766, John Deere M73223, Simplicity 1666801, Simplicity LM-16029-69, Toro/Wheel 105476, Toro/Wheel 106571 |
| SKU | PN128 |
| Brand | PIX or Allwyn |
| Shipping weight | 0.34 kg |
| Packed size | 33.5 × 24.5 × 2.0 cm |
