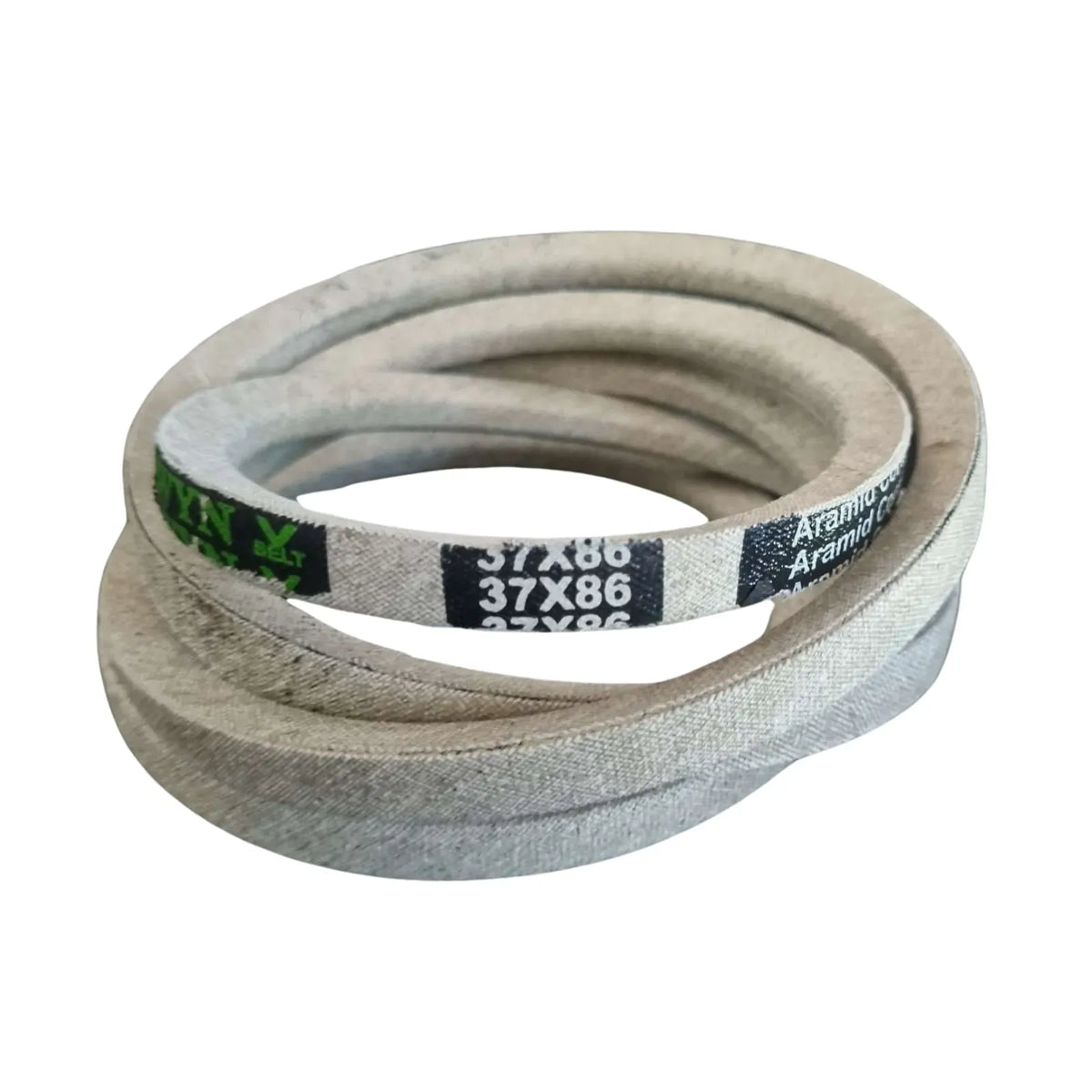

A Murray 37X number is the belt's part number: a 37X86 (also written 037X86MA) is our 82-inch Kevlar cutter deck belt for selected Murray 38-inch lawn tractors, and a 37X88 is the 86.25-inch cutter deck belt for selected 42-inch models. We list 20 Murray 37X numbers across 17 belts, with the Rover, Stihl-Viking and Victa mowers that share them.
Got the number off your old belt? Find it in the table, then check the position and your model on the listing. Searching 37X3? We don't list a 37X3 belt. Our 37X31 (91 inches inside) is a different number, so check the number on your old belt, or send it to us.
| On your old belt | What it tells you |
|---|---|
| 37X86, 037X86, 37X86MA, 037X86MA | Forms of one number. Our listings put all of them on the same belt |
| Width | Every 37X belt we list is 1/2 inch wide, an A-section belt |
| Length | Our listings give each belt's inside and outside length; the table shows inside |
| Kevlar | All 17 of our 37X belts are listed as made with Kevlar |
| Position | The same mower can take two or three different 37X belts, so check where yours runs |
Source: our product listings, read 10 October 2026.
Every Murray 37X number we list
| Murray number (forms we list) | Our belt | Inside length | Position and mowers, as our listing gives them |
|---|---|---|---|
| 37X22 (037X22, 37X22MA) | Murray 37X22 belt | 97" | Murray 38, 39 and 42 inch cut ride-ons: cutter deck |
| 37X24 (37X24MA) | Murray 37X24 belt | 57" | Murray 36 inch cut 16hp, model 36207: cutter belt |
| 37X31 | Murray 37X31 belt | 91" | Murray 36 inch cut 11hp 3 speed: cutter deck |
| 37X34 (037X34, 37X34MA) | Murray 37X34 belt | 75" | Murray 30 inch cut, including model 31709: cutter deck |
| 37X56 | Cub Cadet 490489-R2 belt | 79" | Listed among the Cub Cadet numbers, for Cub Cadet Z-Force 44 and Enforcer 44 models; no Murray mower named |
| 37X59 (037X59, 037X59MA) | Murray 37X59 belt | 77" | Murray 30 inch cut (models 31519, 31520) and 40 inch cut 12.5 and 14.5hp: cutter deck. Victa 16hp Pro series: engine to clutch |
| 37X61 (037X61) | Murray 37X61 belt | 93-3/32" | Murray 30 to 50 inch gear drive and Peerless hydro lawn tractors: transmission (motion) drive. Stihl-Viking MT432T and MT426H, and Victa Noma 3012TX, 4015HX, 4216HX and 4616HX: transmission |
| 37X62 (037X62) | Murray 37X62 belt | 84.5" | Murray 38 inch side discharge (1998 to 2004) and 40 inch side discharge (from 1989), Rover Clipper 40 inch, Stihl-Viking MT433H and MT444H: cutter deck. Stihl-Viking MT446H: Silentrac transmission |
| 37X63 (037X63, 037X63MA) | Murray 37X63 belt | 81" | Murray 38 inch cut from 1989 and Stihl-Viking MT432T: cutter deck |
| 37X66 (037X66, 037X66MA) | Murray 37X66 belt | 45" | Murray 46 inch cut: cross drive (secondary, blade to blade) belt. Rover Clipper 46 inch, model 7800569: secondary deck belt. Victa Noma 4616HX: cutter deck |
| 37X74 (37X074, 37X074MA) | Murray 37X74 belt | 55" | Murray 30 inch Lawn Tractor and Heritage Tractor, and Victa 30 inch Noma 3012TX: cutter deck |
| 37X75 (037X75) | Murray 37X75 belt | 89" | Murray 42 inch cut 12 to 18hp, 1990 to 1996: cutter deck |
| 37X80 and 37X89 (037X and MA forms) | Murray 37X80 and 37X89 belt | 84" | Murray 40, 42 and 46 inch hydro (Dana and Eaton) from 1994, Rover Lawn King and Rancher: transmission (motion) drive. Selected Murray 46 inch and Rover Clipper 7800569: primary deck belt. Victa Noma 4616HX: engine to cutter deck |
| 37X81, 37X96 and 37X106 (037X and MA forms) | Murray 37X106 belt | 87" | Murray 38 to 46 inch hydro from 1996, and Rover Clipper 40 and 42 inch: transmission (motion) drive |
| 37X86 (037X86, 37X86MA, 037X86MA) | Murray 37X86 belt | 82" | Murray 38 inch lawn tractors from 1997, Rover Clipper 38 inch, Stihl-Viking MT423T, MT433T and MT444T, Victa V-80 2691003 and 2691004: cutter deck |
| 37X87 (037X87, 37X87MA) | Murray 37X87 belt | 95" | Murray 30 to 46 inch gear drive and 42 inch hydro, 1997 to 2007, Rover Clipper 38 and 40 inch, Stihl-Viking MT423T, MT425T, MT433T and MT444T, Victa Noma 4013TX: transmission (motion) drive |
| 37X88 (037X88, 37X88MA) | Murray 37X88 belt | 86.25" | Murray 42 inch lawn tractors, Rover Clipper 42 inch, Stihl-Viking MT425T, MT426H, MT435H and MT446H: cutter deck |
Source: our product listings, read 10 October 2026. Each row sums up a long model list, so check your model number on the listing. Three cases need your old belt number first: some Murray 38 inch model numbers (such as 38711X42A and 38713X71A) appear on both our 37X62 and 37X63 listings as the cutter belt; the Stihl-Viking MT433H and MT435H appear on two of our transmission belt listings (our 37X61 belt and our Stihl-Viking 7004 872 1325 belt); and the Victa Noma 4616HX appears on both our 37X66 (cutter deck) and 37X80 and 37X89 (engine to cutter deck) listings.
Many of these belts also carry Cub Cadet, MTD, John Deere, Toro and other numbers. For the MTD and Cub Cadet 754- and 954- numbers, see our MTD, Cub Cadet and Yardman belt guide.
Five 37X belts are listed under the Murray number: order by the number
Twelve of the belts above are supplied under a standard Kevlar A-section size code. Five are supplied under the Murray number itself: our 37X61, 37X62, 37X63, 37X86 and 37X88. Three of them are in-between lengths: 84.5 inches (37X62), 86.25 inches (37X88) and 93-3/32 inches (37X61) inside.
Aftermarket belts in standard sizes come in 1-inch steps, so there is no standard A belt at exactly those lengths. Order these by the 37X number, not by a rounded-off size. Where you can, our team goes by the maker's belt number rather than measuring.
Rover, Stihl-Viking and Victa: the same belts under other numbers
On our listings, the same 37X belt carries Murray, Rover, Stihl-Viking and Victa numbers, and the numbers line up:
- Victa: the Victa number is often the Murray number with NR in front. NR037X61 is listed on our 37X61 belt, NR037X66 on the 37X66 and NR037X74 on the 37X74.
- Stihl-Viking: the 6121 071 numbers end in Murray's 710 numbers. Stihl-Viking 6121 071 0193 sits on the same belt as Murray 710193 (our 37X86), and 6121 071 0213 with Murray 710213 (our 37X88).
- Rover Clipper: most of the Clipper models our listings name carry Murray-style model numbers, such as 385002X108A on the 37X86 belt and 425621X108A on the 37X88.
So if your Rover, Stihl-Viking or Victa belt shows a 37X number, use it. If it shows the brand's own number, search for it on our Stihl-Viking, Rover or Victa belts, or send it to us.
How to find the right 37X belt
- Read the number on your old belt, or find it in your mower's manual. Our listings point out that one belt can have several applications, so the manual's number is the safe check.
- Check the position. A Murray 385002X50A lists our 37X86 on the cutter deck and our 37X87 on the transmission. A 46 inch deck can have a primary and a secondary deck belt.
- Match the old belt. Every 37X belt we list is Kevlar, and a Kevlar belt can replace a standard belt of the same size, but not the other way round.
- Not in the table? Send us the number on the old belt, or your mower's make and model number, and we'll check.
Our listings say these parts should be fitted by a licensed technician. Follow your mower maker's manual, or have a mower mechanic fit the belt.
Which Bearings Express belt fits
- Pick our Murray 37X86 belt for a 38 inch Murray, Rover Clipper, Stihl-Viking or Victa V-80 cutter deck it lists.
- Pick our Murray 37X88 belt for the 42 inch cutter deck on the Murray, Rover Clipper and Stihl-Viking models it lists.
- Pick our Murray 37X61 belt for the transmission drive on the Murray gear drive and Peerless hydro tractors, and the Victa Noma models, it lists.
- Pick our Murray 37X80 and 37X89 belt if your old belt reads 37X80 or 37X89.
- Pick our Murray 37X63 belt or Murray 37X62 belt by the number on your old 38 or 40 inch cutter belt.
More belts are in our Murray collection.
Questions people also ask
How long is our Murray 37X62 replacement belt?
Our 37X62 belt is listed at 84.5 inches (2146 mm) inside and 86.5 inches (2197 mm) outside, 1/2 inch wide, made with Kevlar. Compare it with your old belt before fitting.
How long is our Murray 37X88 replacement belt?
Our 37X88 belt is listed at 86.25 inches inside and 88.25 inches outside, 1/2 inch wide, made with Kevlar.
Are 37X80 and 37X89 the same belt?
On our listings, yes: both numbers are on one belt, 84 inches inside. So are 37X81, 37X96 and 37X106, on one 87-inch belt.
Is 037X86MA the same belt as 37X86?
Our listings put 37X86, 037X86, 37X86MA and 037X86MA on the same belt, so you can search any form. Match the digits after the X.
Are these genuine Murray belts?
No. They're aftermarket belts made with Kevlar, listed against the Murray, Rover, Stihl-Viking and Victa numbers they replace.
Related reading
- Do I need a Kevlar mower belt?
- MTD, Cub Cadet and Yardman belts: the 754- and 954- numbers
- V-belt sizes chart for Australia
Sources
- Bearings Express product listings for the 17 belts in the table (titles, descriptions, part number fields), read 10 October 2026.
- The Bearings Express team's advice on matching mower belts, Kevlar and in-between sizes, September 2026.
Checked against Bearings Express product listings on 10 October 2026.
