V-Belt B Section Sizes B24 - B88
B24
$26.45
Sale price
$26.45
Regular price
Skip to product information
V-Belt B Section Sizes B24 - B88
$26.45
Sale price
$26.45
Regular price
$24.47 each when you buy 4 or more see bulk prices
Buy in bulk & save
The discount is applied automatically in your cart.
| Quantity | You save | Price each |
|---|---|---|
| Buy 2 | 2.5% off | $25.79 |
| Buy 3 | 5% off | $25.13 |
| Buy 4 or more | 7.5% off | $24.47 |

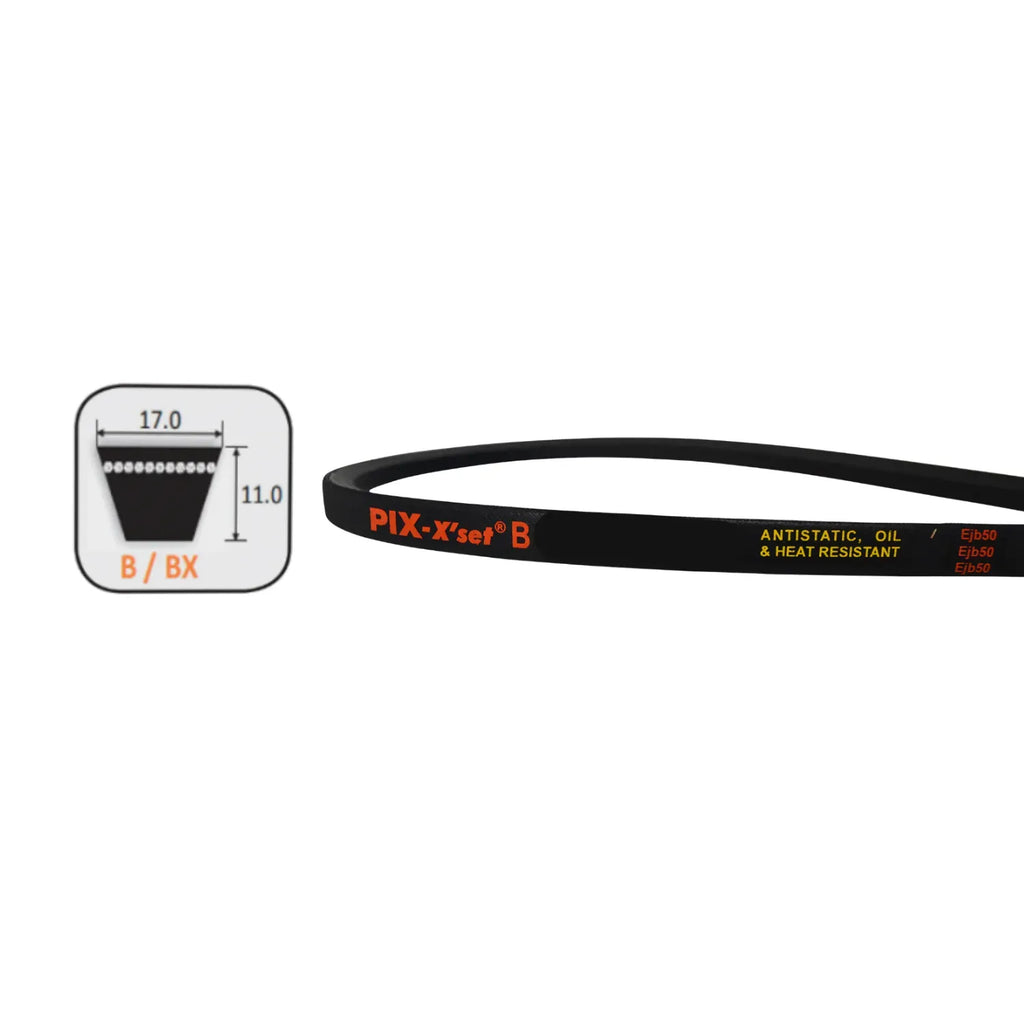

B Section V-Belt | Sizes B24 - B88
- High quality aftermarket replacement belt
- Certified in manufacture ISO/TS16949:2016 and ISO 14001 OHSAS 18001
- These belts meet the 'essential' Health and Safety norms for its entire range of fire-resistant, anti-static belts
______________________________________________________________
Sizing:
Belts are measured on the internal circumference
Each belt number increases in 1" increments and are measured Li (Length Inside)
The difference between the inside and outside circumference is 3"
B-Section Belts 5/8" 17mm Top Width
Sizes not listed may be available, but not kept in stock for immediate dispatch
We will need 1 day lead time. Pricing on request.
___________________________________________________________
How to Select:
Select the belt size you require by clicking the drop-down menu.
Pricing adjusts according to the belt size selected
___________________________________________________________
All parts should be fitted by a licensed technician
Please note:
Due to supply issues some belt sizes are unavailable in PIX brand and have been substituted with Allwyn brand.
Belt size guide
IC = inside circumference. OC = outside circumference. Select your size above — every size listed below is available in this listing.
| Size | Inside (IC) | Outside (OC) | Top width |
|---|---|---|---|
| B24 | 24" | 27" | 17 mm |
| B25 | 25" | 28" | 17 mm |
| B26 | 26" | 29" | 17 mm |
| B27 | 27" | 30" | 17 mm |
| B28 | 28" | 31" | 17 mm |
| B29 | 29" | 32" | 17 mm |
| B30 | 30" | 33" | 17 mm |
| B31 | 31" | 34" | 17 mm |
| B32 | 32" | 35" | 17 mm |
| B33 | 33" | 36" | 17 mm |
| B34 | 34" | 37" | 17 mm |
| B35 | 35" | 38" | 17 mm |
| B36 | 36" | 39" | 17 mm |
| B37 | 37" | 40" | 17 mm |
| B38 | 38" | 41" | 17 mm |
| B39 | 39" | 42" | 17 mm |
| B40 | 40" | 43" | 17 mm |
| B41 | 41" | 43" | 17 mm |
| B42 | 42" | 45" | 17 mm |
| B43 | 43" | 46" | 17 mm |
| B44 | 44" | 47" | 17 mm |
| B45 | 45" | 48" | 17 mm |
| B46 | 46" | 49" | 17 mm |
| B47 | 47" | 50" | 17 mm |
| B48 | 48" | 51" | 17 mm |
| B49 | 49" | 52" | 17 mm |
| B50 | 50" | 53" | 17 mm |
| B51 | 51" | 54" | 17 mm |
| B52 | 52" | 55" | 17 mm |
| B53 | 53" | 56" | 17 mm |
| B54 | 54" | 57" | 17 mm |
| B55 | 55" | 58" | 17 mm |
| B56 | 56" | 59" | 17 mm |
| B57 | 57" | 60" | 17 mm |
| B58 | 58" | 61" | 17 mm |
| B59 | 59" | 62" | 17 mm |
| B60 | 60" | 63" | 17 mm |
| B61 | 61" | 63" | 17 mm |
| B62 | 62" | 65" | 17 mm |
| B63 | 63" | 66" | 17 mm |
| B64 | 64" | 67" | 17 mm |
| B65 | 65" | 68" | 17 mm |
| B66 | 66" | 69" | 17 mm |
| B67 | 67" | 70" | 17 mm |
| B68 | 68" | 71" | 17 mm |
| B69 | 69" | 72" | 17 mm |
| B70 | 70" | 73" | 17 mm |
| B71 | 71" | 73" | 17 mm |
| B72 | 72" | 75" | 17 mm |
| B73 | 73" | 76" | 17 mm |
| B74 | 74" | 77" | 17 mm |
| B75 | 75" | 78" | 17 mm |
| B76 | 76" | 79" | 17 mm |
| B77 | 77" | 80" | 17 mm |
| B78 | 78" | 81" | 17 mm |
| B79 | 79" | 82" | 17 mm |
| B80 | 80" | 83" | 17 mm |
| B81 | 81" | 84" | 17 mm |
| B82 | 82" | 85" | 17 mm |
| B83 | 83" | 86" | 17 mm |
| B84 | 84" | 87" | 17 mm |
| B85 | 85" | 88" | 17 mm |
| B86 | 86" | 89" | 17 mm |
| B87 | 87" | 90" | 17 mm |
| B88 | 88" | 91" | 17 mm |
Buy in bulk & save
Order more and the discount is applied automatically in your cart.
| Quantity | You save | Price each |
|---|---|---|
| Buy 2 | 2.5% off | $25.79 |
| Buy 3 | 5% off | $25.13 |
| Buy 4 or more | 7.5% off | $24.47 |
Specifications
| SKU | N177-B24 |
|---|---|
| Brand | PIX or Allwyn |
| Shipping weight | 0.15 kg |
| Length | 33.5 cm |
| Width | 24.5 cm |
| Height | 2.0 cm |
| Cubic | 0.0016 m³ |
