Most of our Craftsman, Husqvarna and Poulan Pro ride-on mower parts are belts, and the three tables below list 31 of them by OEM number. For example, Husqvarna 532 13 09-69, also listed as Craftsman 130969, is our AK91 Kevlar belt: 13 mm wide, 91 inches inside, the transmission drive belt on the models its listing names.
Find the number from your old belt or your manual's parts list, order the belt in that row, and you can stop here.
Husqvarna 532 belt numbers (also AYP, Craftsman and Poulan)
| Husqvarna number | Also on our listing | Our belt: section, inside length | Position and models, as listed |
|---|---|---|---|
| 532 10 60-85X, 532 12 42-93 | AYP 106085, 124293 | AK77: A, 77" | Cutter deck belt: 36" non-ventilated LR10, LT100, LT120; 30" LT12, LT960-12, LT15; 44" LTH15 |
| 532 12 59-07, 532 19 32-14 | Electrolux G11123461X-00 | AK88: A, 88" | Cutter deck belt: 38" LT1597 and LTH1797, 2006 models only |
| 532 12 65-20, 532 41 92-71 | AYP 126520 | AK85: A, 85" | Cutter deck belt: 30" LTH126 (2009 to 2012), LTH19530. Transmission drive belt: 36" LR10, LR12, LT100, LT120 and others; 38" LT120, LR125 (1995), WE1338 |
| 532 13 08-01, 532 13 82-55, 532 16 08-55 | Craftsman 138255 | AK93: A, 93" | Transmission drive belt: 36" LT1536 (2004 to 2005); Craftsman LT1500 38" (28015) and 42" (25470, 28903) |
| 532 13 09-69 | Craftsman and Dixon 130969; Poulan Pro, Yard Pro, Jonsered, McCulloch | AK91: A, 91" | Transmission drive belt: 38" to 54" LTH, YTH and TS models, the YTH2242TDRF (2011 to 2015) among them; Craftsman YT3000, YT4000, YT4500, PYT9000 by model number; Poulan Pro PP17538HP, PP22042HP |
| 532 13 12-64 | Cub Cadet 754-0461 | AK76: A, 76" | Cutter deck belt: 36" ventilated LR10, LR12, LT100, LR120, LR121, LR130, LRH130 (2000 on), WE1136 |
| 532 13 12-90, 532 14 42-00 | AYP 131290, 144200 | AK86: A, 86" | Cutter deck belt: 38" non-ventilated LT120 12.5 hp; LR12 and LT125 (1995) and LT1238 (2001); 42" ventilated decks with 2 idler pulleys (LT130, LTH130 1999, YTH160, YTH170 and others) |
| 532 14 02-94 | AYP 140294; Poulan, Jonsered, McCulloch | AK80: A, 80" | Transmission drive belt: 36" LTH1536; 42" ventilated hydro models (LTH130 2000, LTH1742 2005 and others); 48" YTH1848XP, YTH2148XP; Poulan Pro PP25H48 |
| 532 17 43-68 | AYP 174368; Poulan, Jonsered | BK87: B, 87" | Cutter deck (primary) belt: 48" GTH2548XP, YTH1848XP, YTH2148XP; Poulan Pro PP25H48 |
| 532 17 48-83 | AYP 174883 | BK94: B, 94" | Cutter deck belt: 42" LTH1842, YTH1542XP, YTH1842XP (2005) |
| 532 17 49-78 | AYP 174978; McCulloch | AK82: A, 82" | Cutter deck belt: 36" LT1536 and LTH1536, ventilated deck only |
| 532 18 08-08 | Poulan, Jonsered | BK86: B, 86" | Secondary cutter deck belt: 48" GTH2548XP, YTH1848XP, YTH2148XP; Poulan Pro PP25H48 |
| 532 40 51-43, 584 45 31-01 | AYP and Craftsman 405143 | AK104: A, 104" | Cutter deck belt, 46": YTH2546T (2007), YTH2546TD (2008 to 2009); Craftsman YT3000, YT4000 by model number |
| 532 40 83-81 | Poulan Pro, Yard Pro, Dixon | AK94: A, 94" | Cutter belt, 38": LT1597 and LTH1797 (2007, not 2006), LT19538 and LTH2038 (2010); Poulan Pro PP17538HP; Yard Pro YP18KH38 |
| 532429636 | Listed as McCulloch | AK100: A, 100" | Blade belt: McCulloch AYP models PB195H42LT, M19542H, M22042H and others |
Source: our product listings, read 12 October 2026. Models are Husqvarna unless another brand is named; each listing names more.
Husqvarna 539, 574 and 587 belt numbers
| Husqvarna number | Also on our listing | Our belt: section, inside length | Position and models, as listed |
|---|---|---|---|
| 539 10 92-43 | BK132: B, 132" | Cutter deck belt: EZ4824, RZ4824, RZ4824TF, WH4817, Z4822, Z4824 and others | |
| 539 11 04-11 | Cox W04, Graden 5644 | AK54: A, 54" | Transmission drive belt: 46" RZ4621 (966582301) |
| 539 11 08-32, 510 20 11-01 | Hustler 777185 | BK142: B, 142" | Cutter deck belt: 42" IZ4217 |
| 539 11 25-28 | Toro 117-7325 | BK158: B, 158" | Cutter deck belt: 48" CD48 combi deck (2006), an option on the IZ4821 |
| 539 11 45-57 | Cub Cadet 754-05013 | BK152: B, 152" | Cutter deck belt: 54" RZ5424T (2013); Jonsered Z54R |
| 539 12 07-72 | Cub Cadet and MTD 754-05001 | AK41: A, 41" | Drive belt: EZ24T, EZ4824, EZ4824C, EZ4824TF |
| 574 84 56-01 | BK124: B, 124" | Cutter deck belt: 42" fabricated deck, YTH2242TDF (2010) and YTH2242TDRF (2012) | |
| 574 84 56-03 | Hustler 791335 | BK140: B, 140.5" | Cutter deck belt: 52" fabricated deck, GTH2752TF (2010) and GTH3052TF (2012) |
| 587 27 00-01 | Jonsered | AK118: A, 118" | Cutter deck belt: 42" Z242E (2019) and Z242F (2015 to 2016) zero-turns; Jonsered Z42F |
Source: our product listings, read 12 October 2026.
Craftsman and AYP numbers
| Craftsman or AYP number | Our belt: section, inside length | Position and models, as listed |
|---|---|---|
| Craftsman 125907, 125907X, 193214; AYP 193214 | AK88: A, 88" | Cutter deck belt: LT1500 38" (28015). Transmission belt: YT3000 and YT4000, 42" and 46" (28922, 28934, 28927, 28924, 28928) |
| Craftsman 754-04207, 954-04207 | AK77: A, 77" | Transmission drive belt: PYT9000 Professional 26 hp, 42" (28980), 46" (28888), 50" (28981) |
| Craftsman 754-04060, 754-04060B, 954-04060, 954-04060B | AK94: A, 94" | Cutter deck belt: PYT9000 Professional 42" (28980) |
| Craftsman 754-04219, 954-04219 | AK101: A, 101" | Cutter deck belt: 46" 247.28888 |
| Craftsman 037X22-MA, 37X22, 23749, STD224990 | AK97: A, 97" | Cutter deck belt on Murray 38" to 42" ride-ons; no Craftsman model named |
| Craftsman 4454J, 7074J | AK63: A, 63" | No model or position listed: order by the number |
| AYP 58406 | AK63: A, 63" | Cutter deck belt: AYP 46" (2007) |
Source: our product listings, read 12 October 2026. Our AK63 listing for Rover and Bolens (pn94) also carries these three numbers in its search terms.
How the AYP, Craftsman and Husqvarna numbers line up
On ten of our listings, the six-digit AYP or Craftsman number is the last six digits of the Husqvarna 532 number on the same listing. Craftsman 130969 sits with 532 13 09-69, AYP and Craftsman 405143 with 532 40 51-43, and AYP 140294 with 532 14 02-94. So if your belt says 405143, search our site for those six digits. Craftsman 125907 and 193214 (our AK88, pn138) are also the last six digits of Husqvarna 532 12 59-07 and 532 19 32-14, on another AK88 listing.
Most of our listings write the Husqvarna numbers with spaces and a hyphen; a few run them together. Run together, 532130969 is the same number as 532 13 09-69.
The pattern has limits. The 539, 574 and 587 numbers in our listings have no AYP or Craftsman twin, and 584 45 31-01 shares a listing with 532 40 51-43 without following it. Some Craftsman ride-ons in our listings carry MTD 754- and 954- numbers instead: our MTD belt guide explains those.
Husqvarna YTH2242TDRF belts and the belt diagram
Our listings name two belts for the YTH2242TDRF:
- Transmission drive belt: 532 13 09-69, our AK91, listed for product numbers 96041023701 to 96041023704 (2011 to 2015).
- Cutter deck belt: 574 84 56-01, our BK124, listed for the 2012 model with the 42" fabricated deck.
For other years, check the number on the old deck belt before you order.
Your owner's manual shows the belt routing. Husqvarna's support page finds the operator's manual by product number, or by model name for older machines, and its parts finder shows exploded diagrams. On garden tractors and riders, the product label is under the seat or on the frame.
Poulan Pro ride-on mower belts
Our listings name three Poulan Pro ride-ons:
- PP25H48 (48"): transmission drive belt 532 14 02-94 (AK80), primary cutter deck belt 532 17 43-68 (BK87) and secondary cutter deck belt 532 18 08-08 (BK86). The Husqvarna YTH1848XP and YTH2148XP and the Jonsered LT2122A are listed with the same three.
- PP17538HP (38"): cutter belt 532 40 83-81 (AK94) and transmission drive belt 532 13 09-69 (AK91).
- PP22042HP (42"): transmission drive belt 532 13 09-69 (AK91). None of our listings names its deck belt.
Same model, different belt: year and deck matter
- LT1597 and LTH1797 (38"): the cutter belt is the AK88 on 2006 models and the AK94 from 2007.
- LR10 and LT100 (36"): the cutter deck belt is the AK77 on a non-ventilated deck and the AK76 on a ventilated one.
- Craftsman YT3000 and YT4000: the transmission belt is the AK88 or the AK91, depending on the model number.
- LT120 and LR12: our listings give more than one cutter deck belt. LT120: AK77 on the 36" non-ventilated deck, AK86 on the 38" non-ventilated 12.5 hp, AK85 on the 1992 38" ventilated deck. LR12: AK76 on the 36" ventilated deck, AK86 on 1995 models.
- LTH1742 and LTH1842 (42"): the transmission drive belt is the AK80 on the 2005 LTH1742 and 2006 LTH1842 our listing names, and the AK91 on the 2007 and 2008 models (LTH1842, LTH1842T, LTH1742T).
So read the model, product number and year off the label, and check the deck type, before you order.
Kevlar, A or B, and inside length
Every belt in the three tables is listed as made with Kevlar. In our experience, 99% of deck (cutter) belts are Kevlar, and a standard belt in a Kevlar position can shred within hours. Match the old belt: a Kevlar belt can replace a standard belt of the same size, but not the other way round. More in Do I need a Kevlar mower belt?
A is the 13 mm (1/2 inch) section and B is 17 mm (5/8 inch). The tables give inside lengths; the outside is 2 inches longer on an A belt and 3 inches on a B. A US listing such as "1/2 x 93" gives the outside length, and our 1/2 x 95 guide converts it.
Craftsman XL ride-ons in our Cox listings
Our Cox listings also name a Craftsman XL, 26" cut (5 hp) and 28" cut (10 hp). Its transmission (engine to clutch) belt is Cox V01 or VA33: our A33, or the Kevlar AK33. Cox VB58, our B58, is listed as the clutch to cutter deck belt on selected Craftsman XL models, and that listing asks you to check the maker's belt number first.
How to find the right belt
- Read the number off the old belt or the parts list in your operator's manual, and order by it rather than by measuring. Our listings ask you to check the manual, because one belt can have several applications.
- Check the position: cutter deck, transmission drive, or the primary and secondary deck belts on the 48" models above.
- Match the model, product number and year to the row.
- Not in the tables? Search our site for the number, or send it to us.
Which Bearings Express belt fits

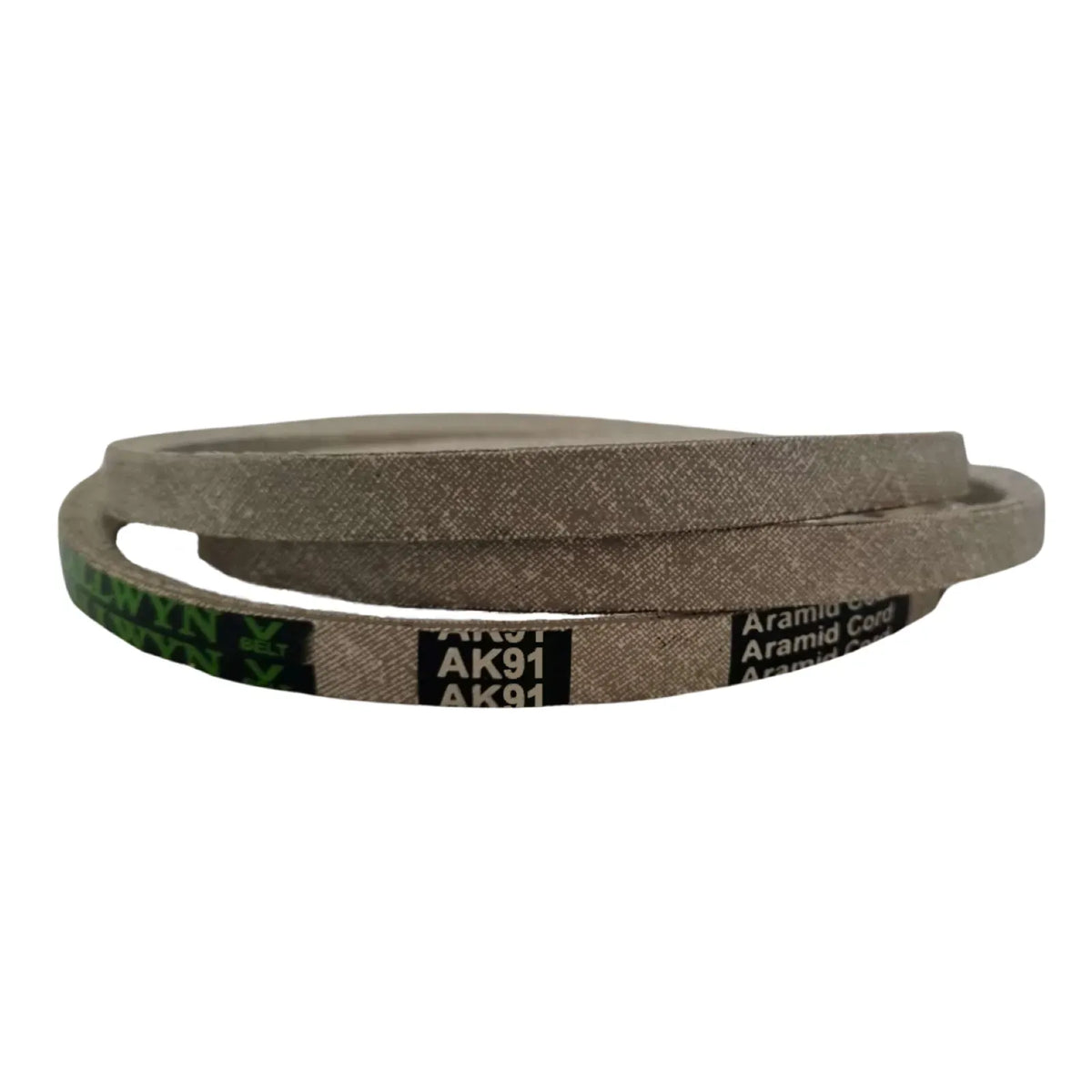

- Pick the AK91 transmission drive belt for Husqvarna 532 13 09-69 or Craftsman 130969.
- Pick the BK124 cutter deck belt for the YTH2242TDF (2010) or YTH2242TDRF (2012) fabricated deck.
- Pick the AK104 cutter deck belt for Craftsman or AYP 405143: the 46" YTH2546T and YTH2546TD, and the Craftsman YT3000 and YT4000 model numbers it lists.
- Pick the AK94 cutter belt for a 2007 or later LT1597 or LTH1797, or the Poulan Pro PP17538HP.
- Pick the BK87 primary and BK86 secondary deck belts for the Poulan Pro PP25H48 and Husqvarna 48" XP models.
- Pick the AK88 belt for Craftsman 125907 or 193214.
Other Craftsman, Husqvarna and Poulan parts
Our Husqvarna, Craftsman, Poulan and AYP collections hold the belts above plus a few other parts: Briggs & Stratton 492932 oil filters, listed for the Craftsman YT4000 (25432), and a pair of 1 inch bore collar bearings listed against Husqvarna 539102677, 539107406 and 539115279. For any other part, send us the number from your manual.
Questions people also ask
What size is the Husqvarna 539114557 belt?
Our replacement is a BK152: B section, 17 mm wide, 152 inches inside and 155 outside, listed as the cutter deck belt on the 54" RZ5424T.
What size is the Husqvarna 52 inch deck belt?
The one our listings name is 574 84 56-03, our BK140, listed at 140.5 inches inside for the 52" fabricated deck GTH2752TF and GTH3052TF. Another 52" deck may use a different number, so check yours.
Are these genuine Husqvarna or Craftsman belts?
No. Our listings describe them as aftermarket replacement belts, made with Kevlar. Match the OEM number on your old belt or in your manual.
Related reading
- MTD, Cub Cadet and Yardman belts: the 754- and 954- numbers matched to belt sizes
- Do I need a Kevlar mower belt? Kevlar vs standard V-belts, and A103K vs AK103
- Mower belt listed as "1/2 x 95"? How to turn it into an A or AK belt size
Sources
- Husqvarna Australia, "Support, Manuals & Product Help": manual search by product number or model name, and product label locations, https://www.husqvarna.com/au/support/, read 12 October 2026.
Checked against Bearings Express product listings, the Bearings Express team's advice and Husqvarna's support page on 12 October 2026.
